6809490A77-O October 4, 2004 17
Level 1 and 2 Service Manual Disassembly
Disassembly
This section describes how to disassemble an A1000 telephone. Tools and equipment
used are listed in Table 6, preceding.
Removing and Replacing the Battery Door
To Remove the Battery Door
1. Ensure the phone is turned off.
2. Press the battery door release button.
3. Slide the battery door as indicated by the white arrow.
4. Carefully lift the battery door up and away from the phone.
To Replace the Battery Door
1. Align the battery door tabs to the slots on the back of the phone.
2. Lower the battery door onto the back of the phone.
3. Slide the battery door into its final position.
G
Many of the integrated devices used in this equipment are vulnerable to damage
from electrostatic discharge (ESD). Ensure adequate static protection is in place
when handling, shipping, and servicing the internal components of this equipment.
G
Avoid stressing the plastic in any way to avoid damage to either the plastic or
internal components.

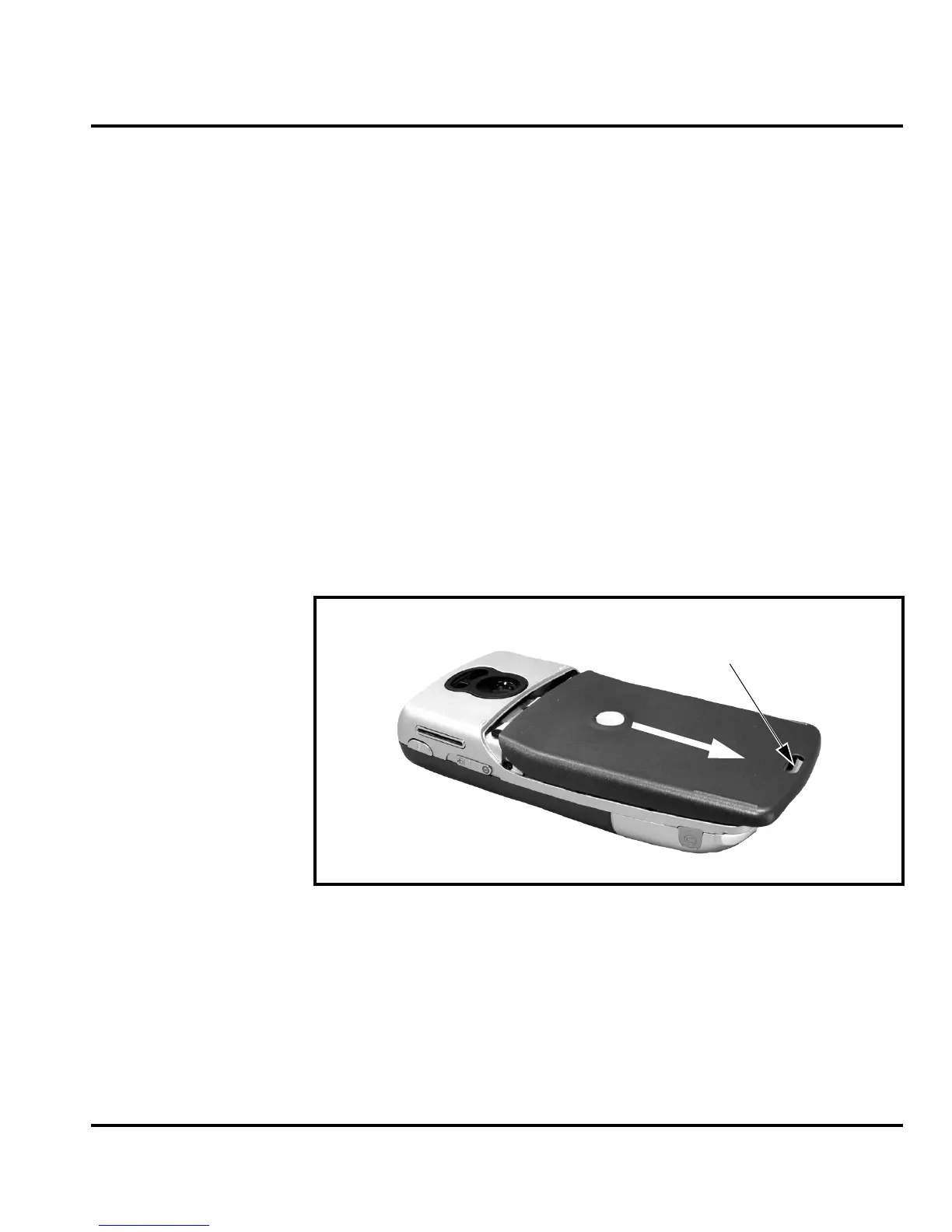

Figure 4. Removing the Battery Door
Battery Door Release
Button Location
