6809490A77-O October 4, 2004 21
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Rear Housing
To Remove the Rear Housing
1. Ensure the phone is off.
2. Remove the battery door.
3. Remove the battery.
4. Remove the USIM.
5. Using a driver with a T-6 Torx Plus bit, remove the 8 screws that secure the
rear housing to the front housing (see Figure 7).
G
This product contains static-sensitive devices. Use anti-static handling procedures
to prevent electrostatic discharge (ESD) and component damage.

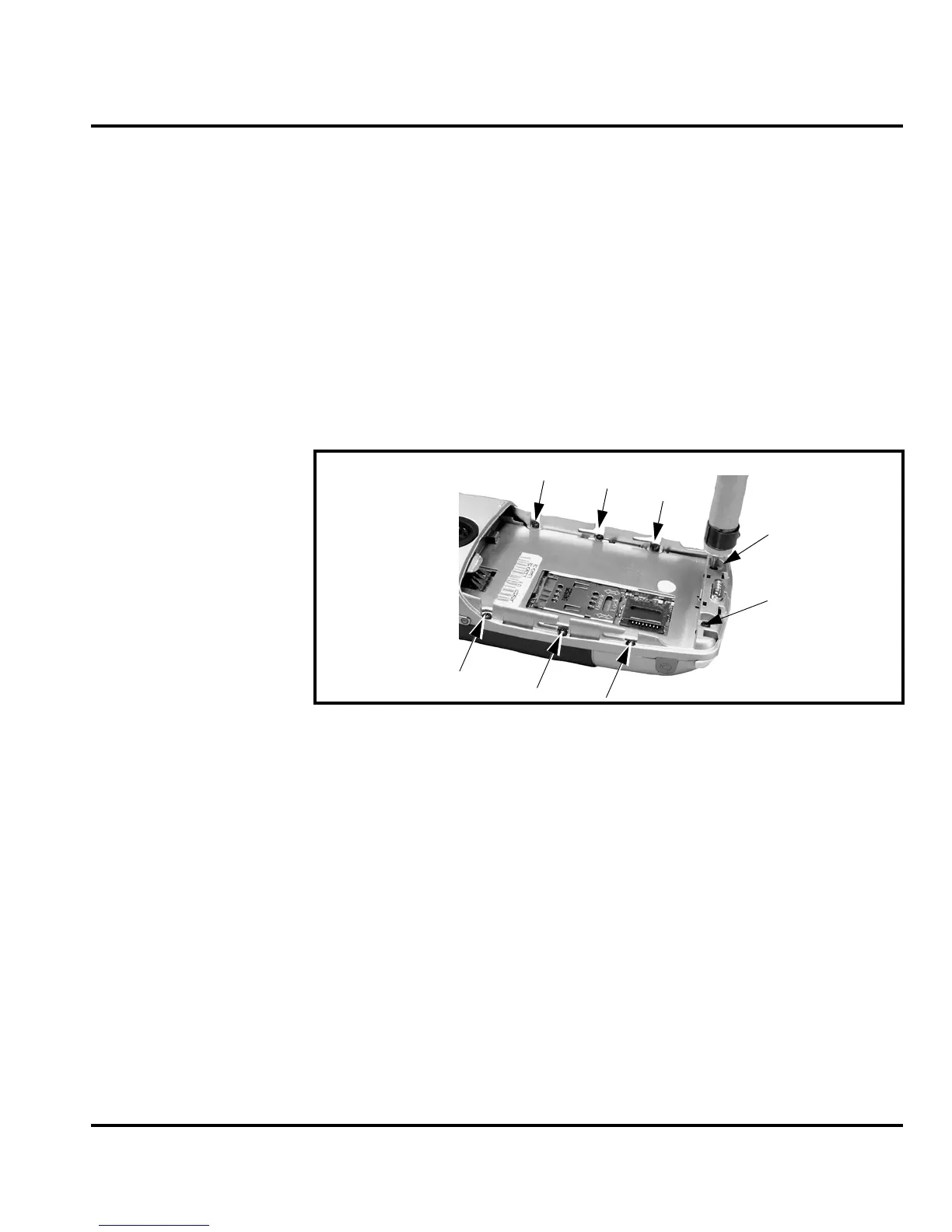

Figure 7. Removing the Rear Housing
Screw
Locations
To Next Page
