Motorola A1000 Service Manual

22 October 4, 2004 6809490A77-O
Disassembly A1000
6. Lift the rear housing up and off of the phone.
To Replace the Rear Housing
1. Align the rear housing to the front housing.
2. Lower the rear housing onto the front housing. Press it into place.
3. Replace the 8 screws with a T-6 Torx Plus bit and torque them to 1 in-lb.
4. Replace the USIM, battery, and battery door as described in the procedures.

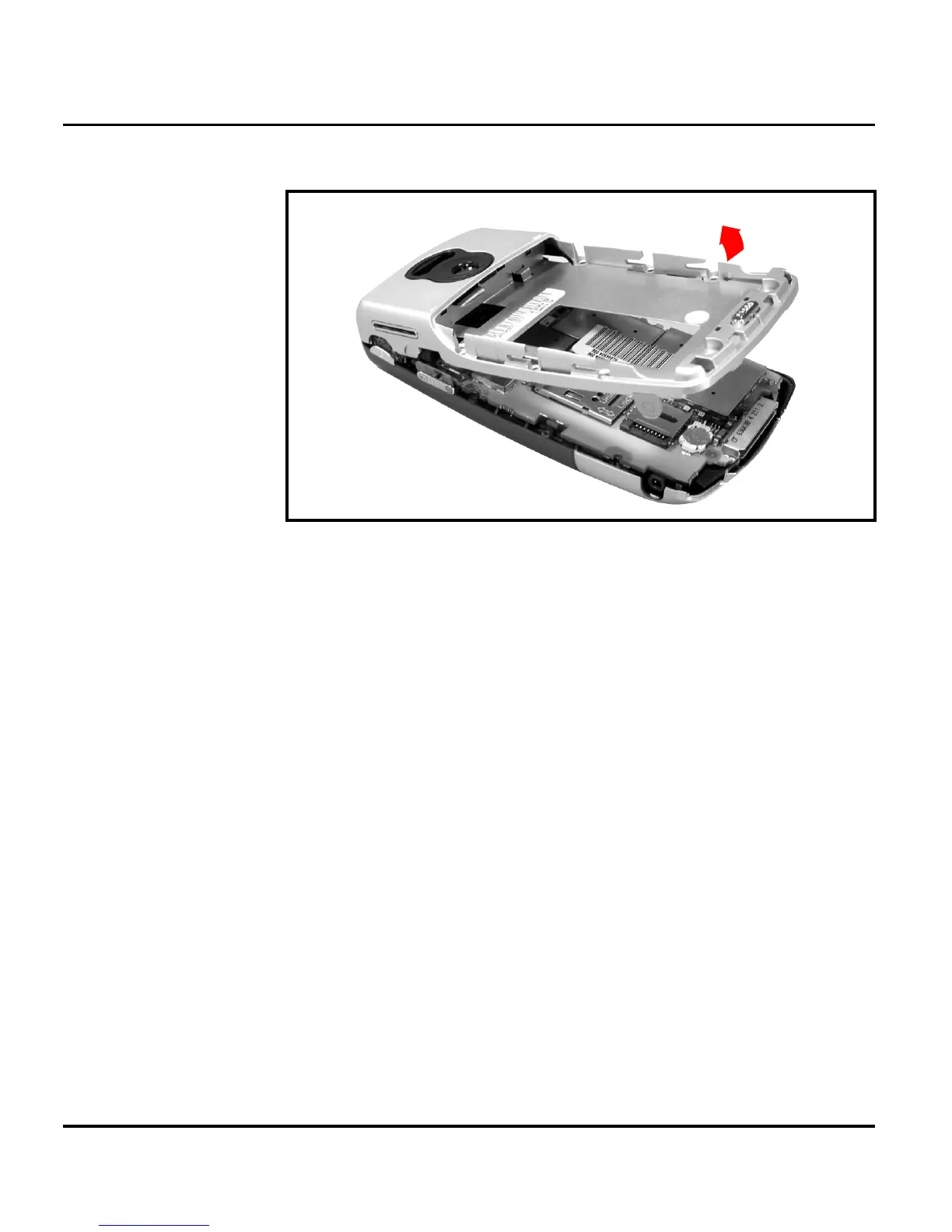

Figure 8. Removing the Rear Housing (Continued)
1

Motorola A1000 Specifications

General

Brand	Motorola
Model	A1000
Category	Cell Phone
Language	English
