AP-51xx Access Point Product Reference Guide
5-24
To configure port forwarding for the access point:
1. Select Network Configuration -> WAN -> NAT from the access point menu tree.
2. Select 1 to 1 or 1 to Many from the NAT Type drop-down menu.
3. Click on the Port Forwarding button within the Inbound Mappings area.

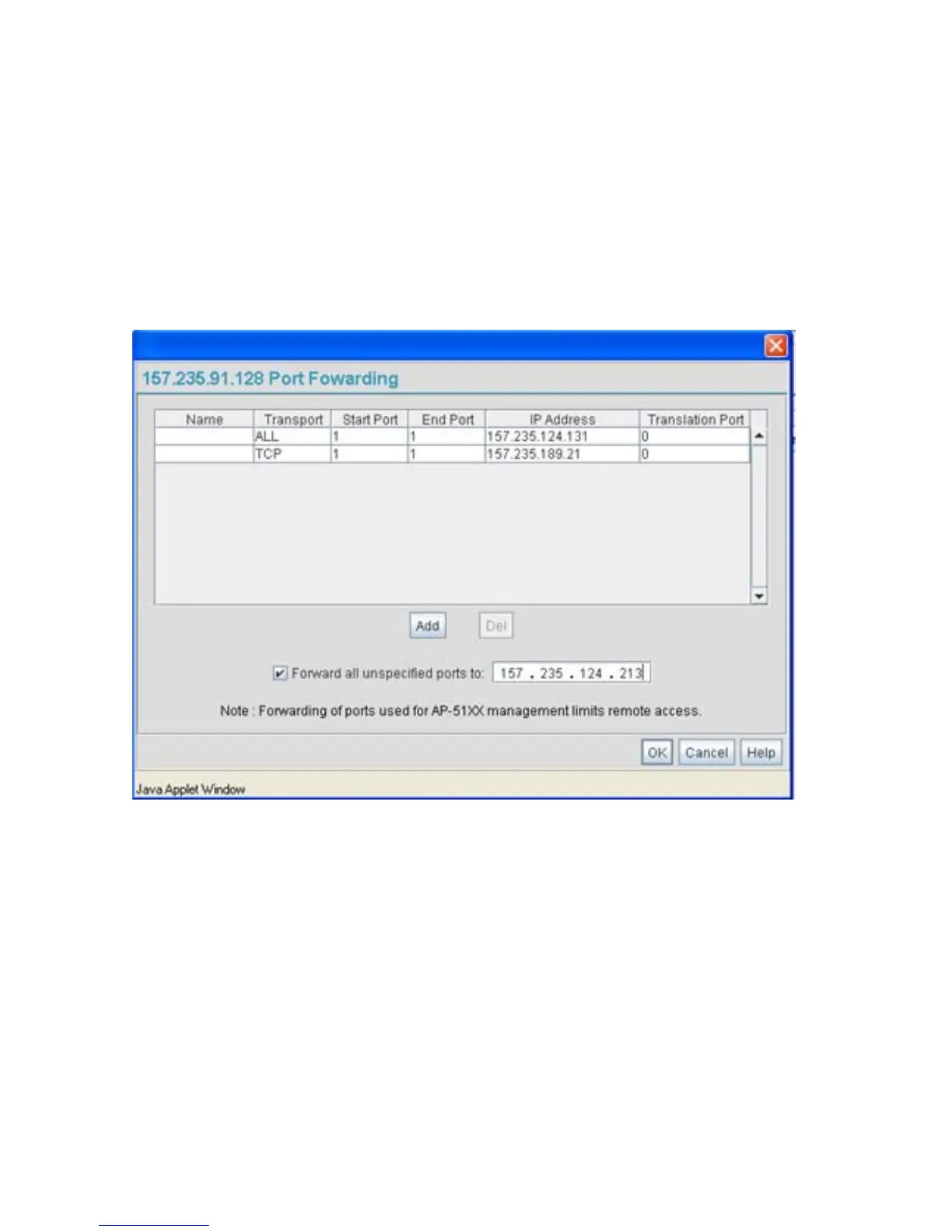

4. Configure the Port Forwarding screen to modify the following:
Add Click Add to create a local map that includes the name, transport
protocol, start port, end port, IP address and Translation Port for
incoming packets.
Delete Click Delete to remove a selected local map entry.
Name Enter a name for the service being forwarded. The name can be any
alphanumeric string and is used for identification of the service.
Transport Use the Transport pull-down menu to specify the transport
protocol used in this service. The choices are ALL, TCP, UDP, ICMP,
AH, ESP, and GRE.
