AP-51xx Access Point Product Reference Guide
2-8
For detailed specifications on the 2.4 GHz and 5.2 GHz antennae mentioned in this section, see
section 2.4 GHz Antenna Matrix on page A-5 and section 5.2 GHz Antenna Matrix on page A-6.
2.4.2.2 AP-5181 Antenna Options

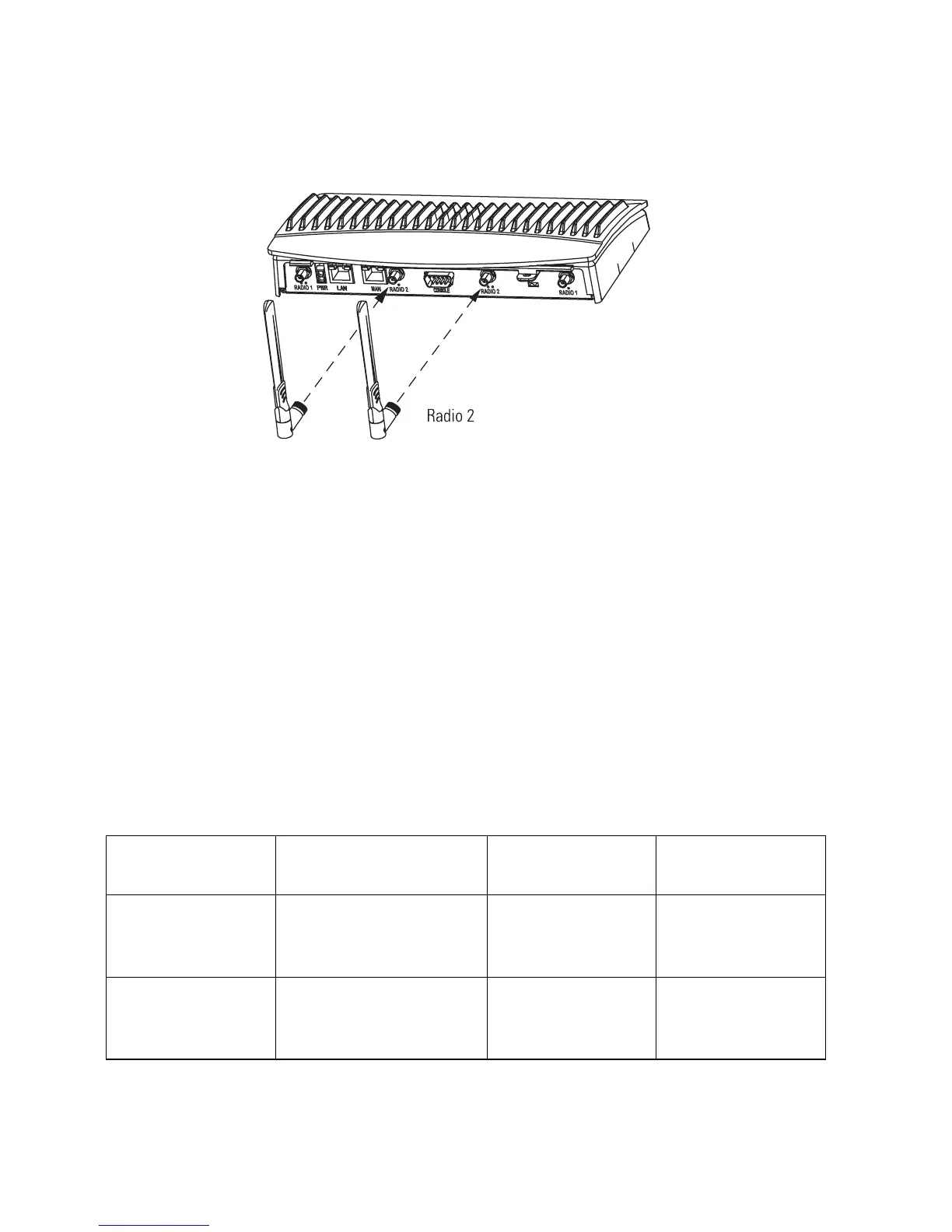

Both Radio 1 and Radio 2 require one antenna and can optimally use two antennae per radio (4
antennae total). Antenna connectors for Radio 1 are located in a different location from the Radio 2
antenna connectors. Two antennae per radio provides diversity that can improve performance and
signal reception. Motorola supports two antenna suites for the AP-5181. One antenna suite
supporting the 2.4 GHz band and another antenna suite supporting the 5.2 GHz band. Select an
antenna model best suited to the intended operational environment of your AP-5181.
Refer to the following for the antenna options available to an AP-5181 model access point:
The AP-5181 2.4 GHz antenna suite includes the following models:
Part Number Antenna Type
Nominal Net Gain
(dBi) Description
ML-2499-FHPA5-01R Omni-Directional Antenna 5.0 2.4 GHz,
Type N connector,
no pigtail
ML-2499-FHPA9-01R Omni-Directional Antenna 9.0 2.4 GHz,
Type N connector,
no pigtail
