AP-51xx Access Point Product Reference Guide
7-24
7. Click the Logout button to securely exit the Access Point applet.
7.4.1.1 Retry Histogram
Refer to the Retry Histrogram screen for an overview of the retries transmitted by an access point
radio and whether those retries contained any data packets. Use this information in combination with
the error fields within a Radio Stats screen to assess overall radio performance.

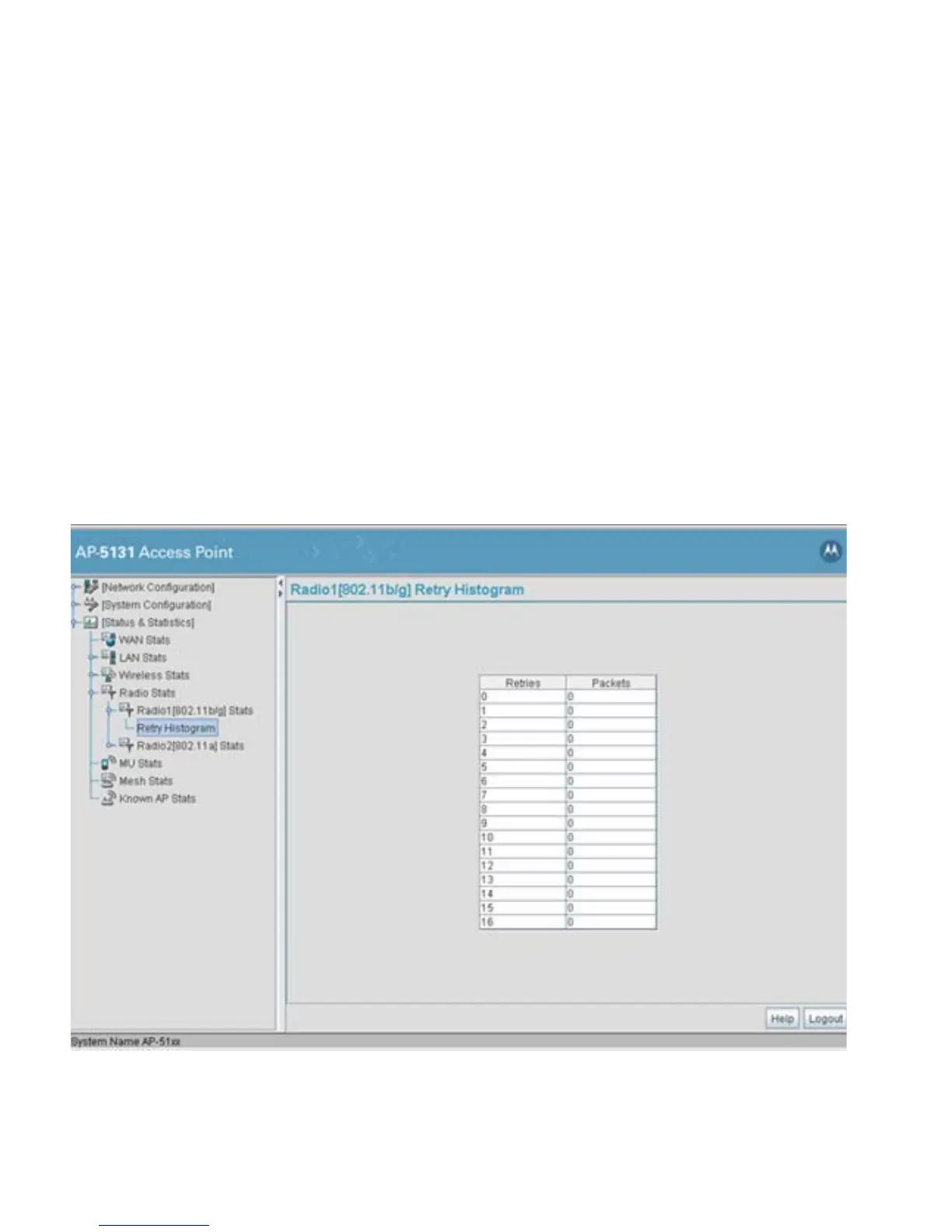

To display a Retry Histogram screen for an access point radio:
1. Select Status and Statistics -> Radio Stats -> Radio1(802.11b/g) Stats -> Retry
Histogram from the access point menu tree.
A Radio Histogram screen is available for each access point radio (regardless of single or
dual-radio model).
The table’s first column shows 0 under Retries. The value under the Packets column
directly to the right shows the number of packets transmitted by this access point radio that
required 0 retries (delivered on the first attempt). As you go down the table you can see the
To Next Page
