Motorola AP-51XX User Manual

Configuring Mesh Networking
9-21
AP#1 and AP#2 will be configured somewhat the same. However there are some important (yet
subtle) differences. Therefore, the configuration of each access point will be described separately.
9.3.1.1 Configuring AP#1:

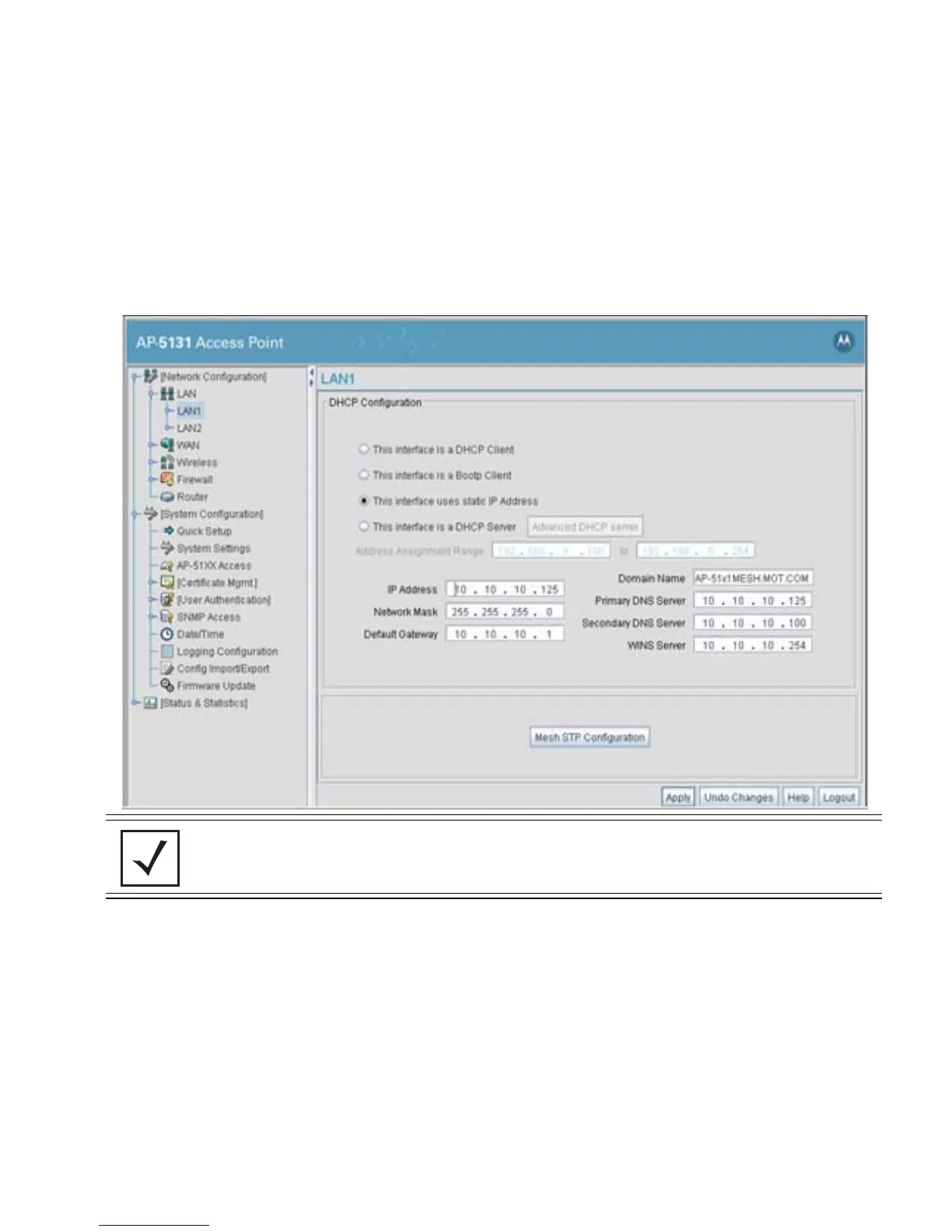

1. Provide a known IP address for the LAN1 interface.
2. Assign a Mesh STP Priority of 40000 to LAN1 Interface.
NOTE Enable the LAN1 Interface of AP#1 as a DHCP Server if you intend to
associate MUs and require them to obtain an IP address via DHCP.
