Hardware Installation
2-19

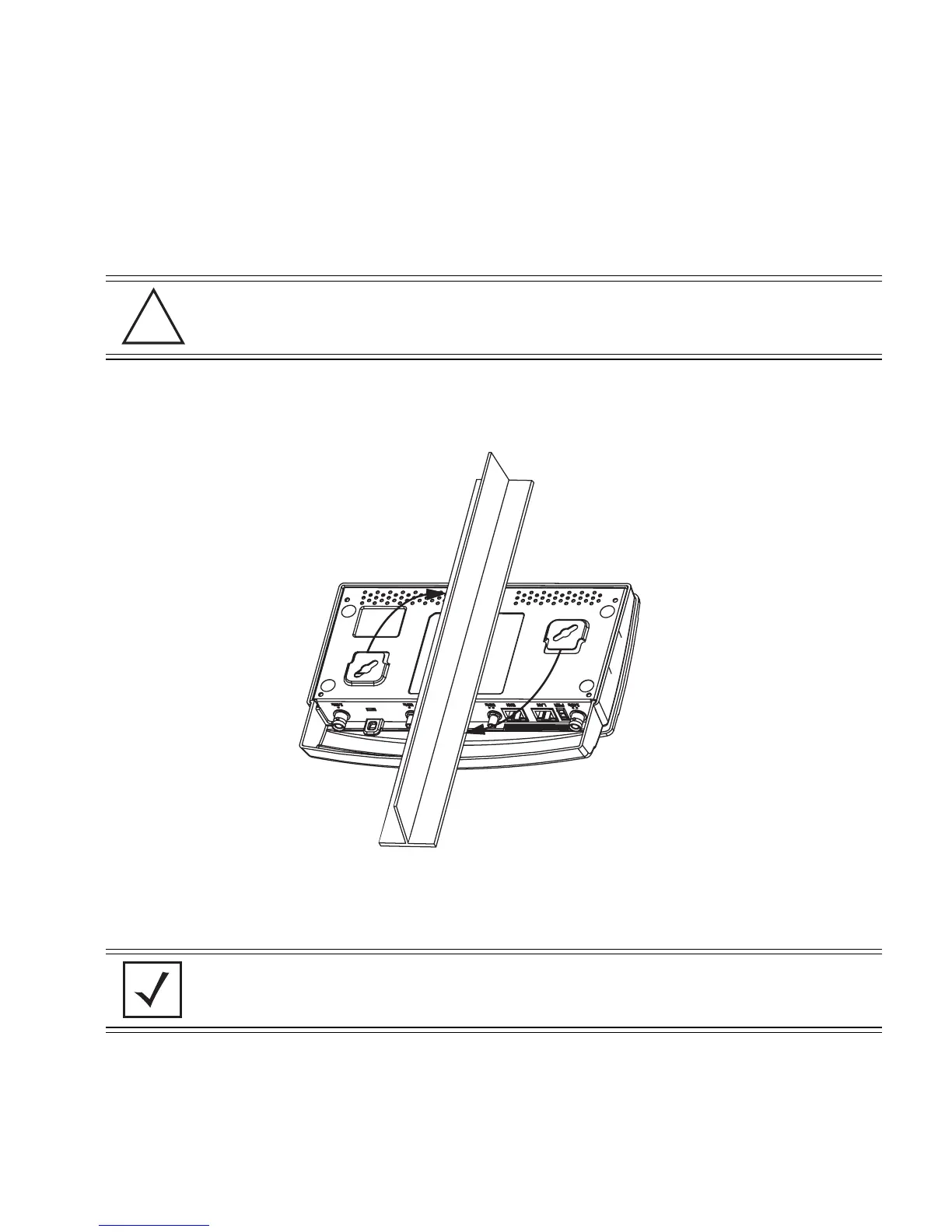

7. Orient the AP-5131 chassis by its length and the length of the ceiling T-bar.
8. Rotate the AP-5131 chassis 45 degrees clockwise, or about 10 o’clock.
9. Push the back of the AP-5131 chassis on to the bottom of the ceiling T-bar.
10. Rotate the AP-5131 chassis 45 degrees counter-clockwise. The clips click as they fasten to
the T-bar.
11. The AP-5131 is ready to configure. For information on an AP-5131 default configuration, see
Getting Started on page 3-1. For specific details on AP-5131 system configurations, see
System Configuration on page 4-1.
CAUTION Ensure the safety wire and cabling used in the T-Bar AP-5131
installation is securely fastened to the building structure in order to
provide a safe operating environment.
NOTE If the AP-5131 is utilizing remote management antennae, a wire cover
can be used to provide a clean finished look to the installation. Contact
Motorola for more information.
!
