Troubleshooting Waveforms: Audio SSI 6-9
6.3.2 Red Rx
Trace 1: Trace recorded at Pin 27 of J4001.

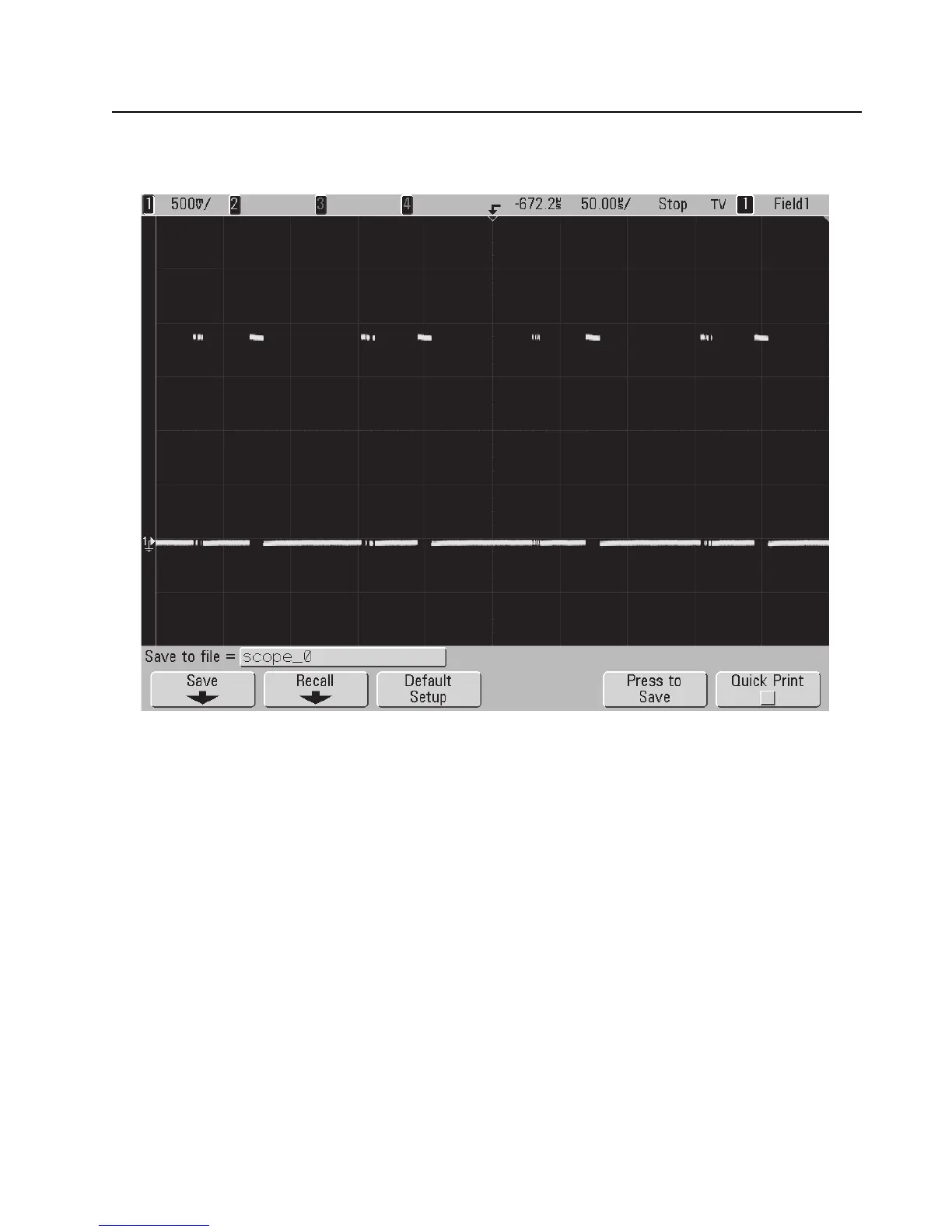

Figure 6-7. Audio SSI – Red Rx Waveform
