Troubleshooting Waveforms: GCAI 6-27
6.9.2 GPIO4 / Keyfail during Keyload

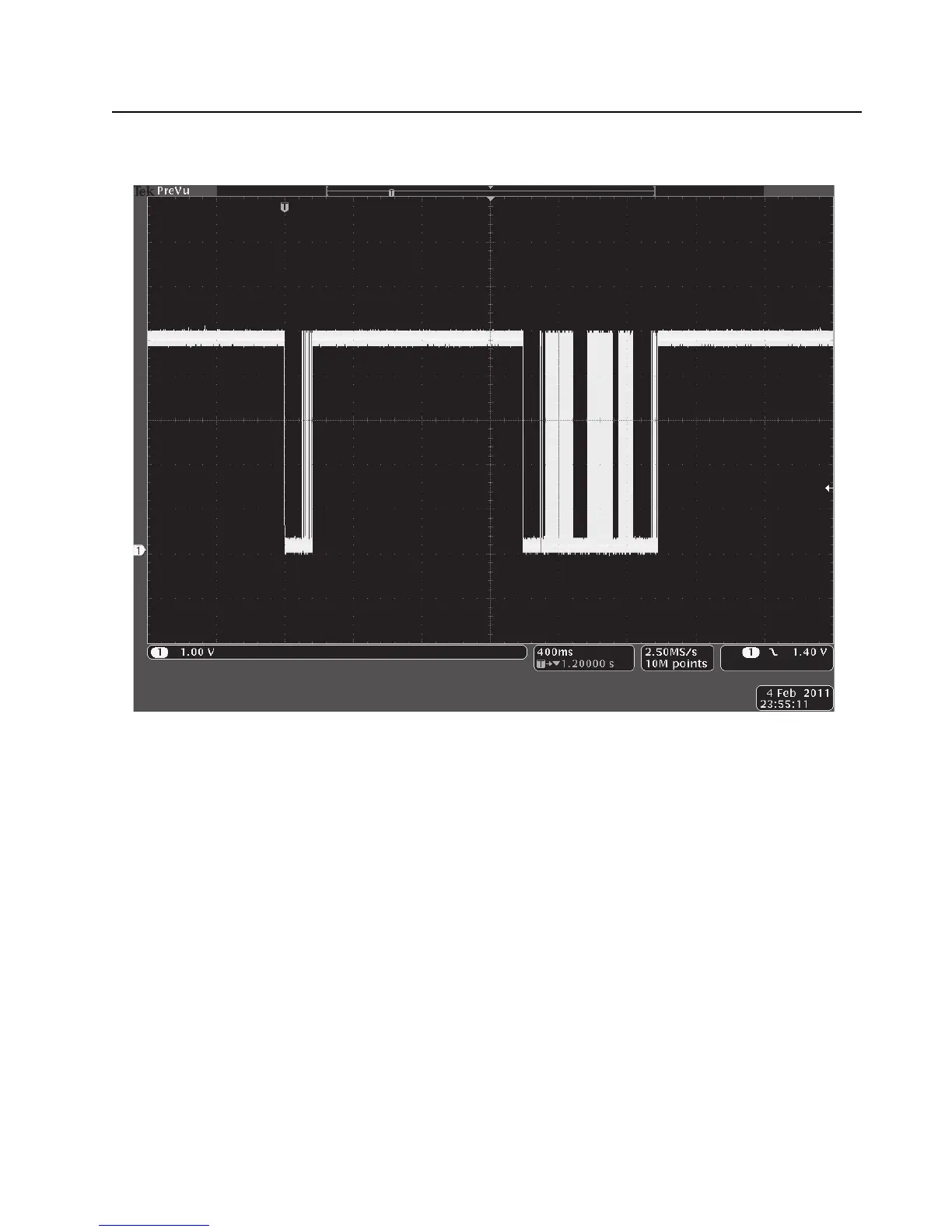

Trace 1: Trace recorded at Pin 65 of J4001 during Keyloading.
Figure 6-25. GCAI – GPIO4 Waveform
