6-20 Troubleshooting Waveforms: SPI
6.6.3 MISO

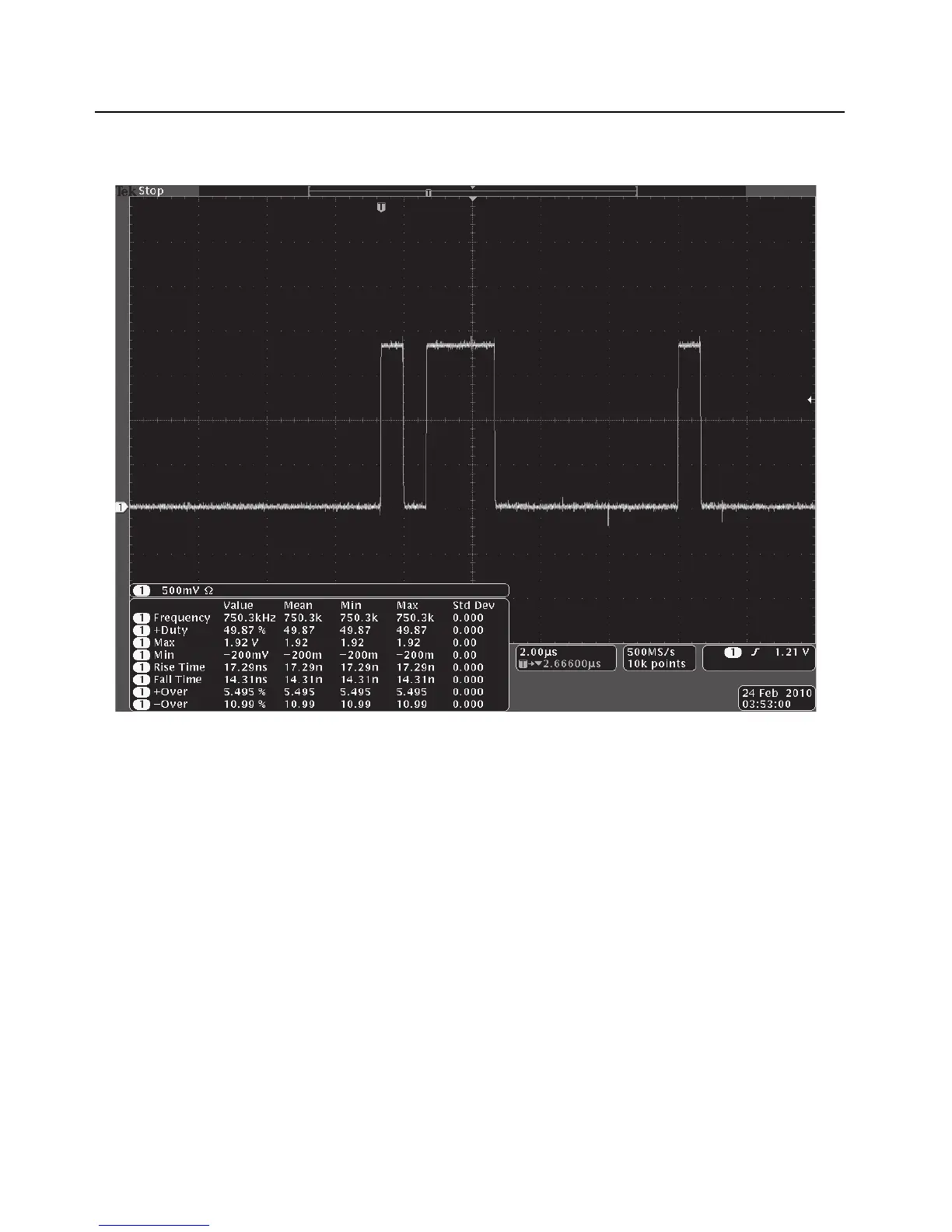

Trace 1: Trace recorded at Pin 29 of J1001.
Figure 6-18. MISO Waveform
