6-50 Troubleshooting Waveforms: GPS
6.16.2 GPS RTC (GPS 32 kHz RTC)
Trace 1: Trace recorded at TP2405 of Expansion Board.

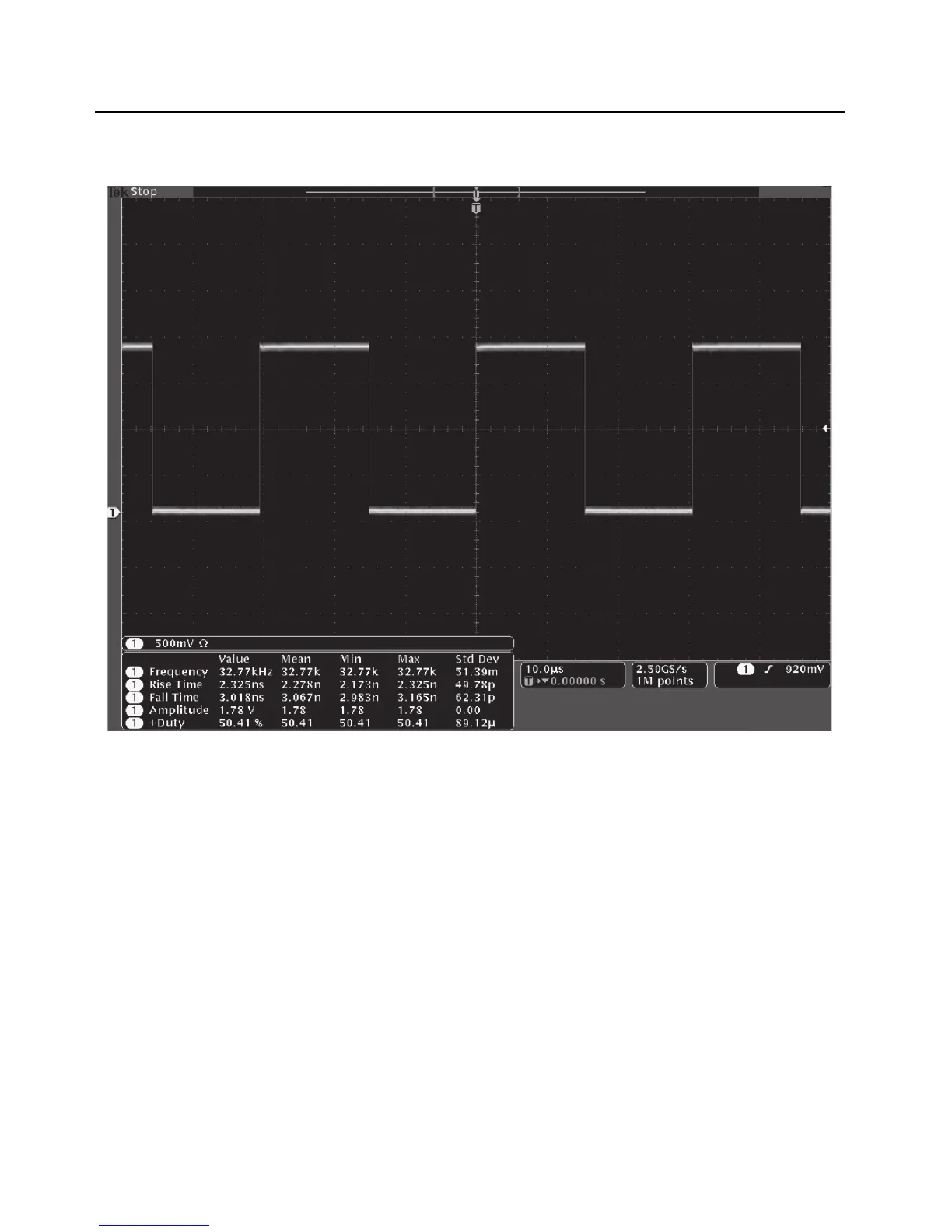

Figure 6-48. GPS RTC Waveforms
