Troubleshooting Waveforms: Expandable Memory (eMMC) 6-47
6.14.9 eMMC : Clock

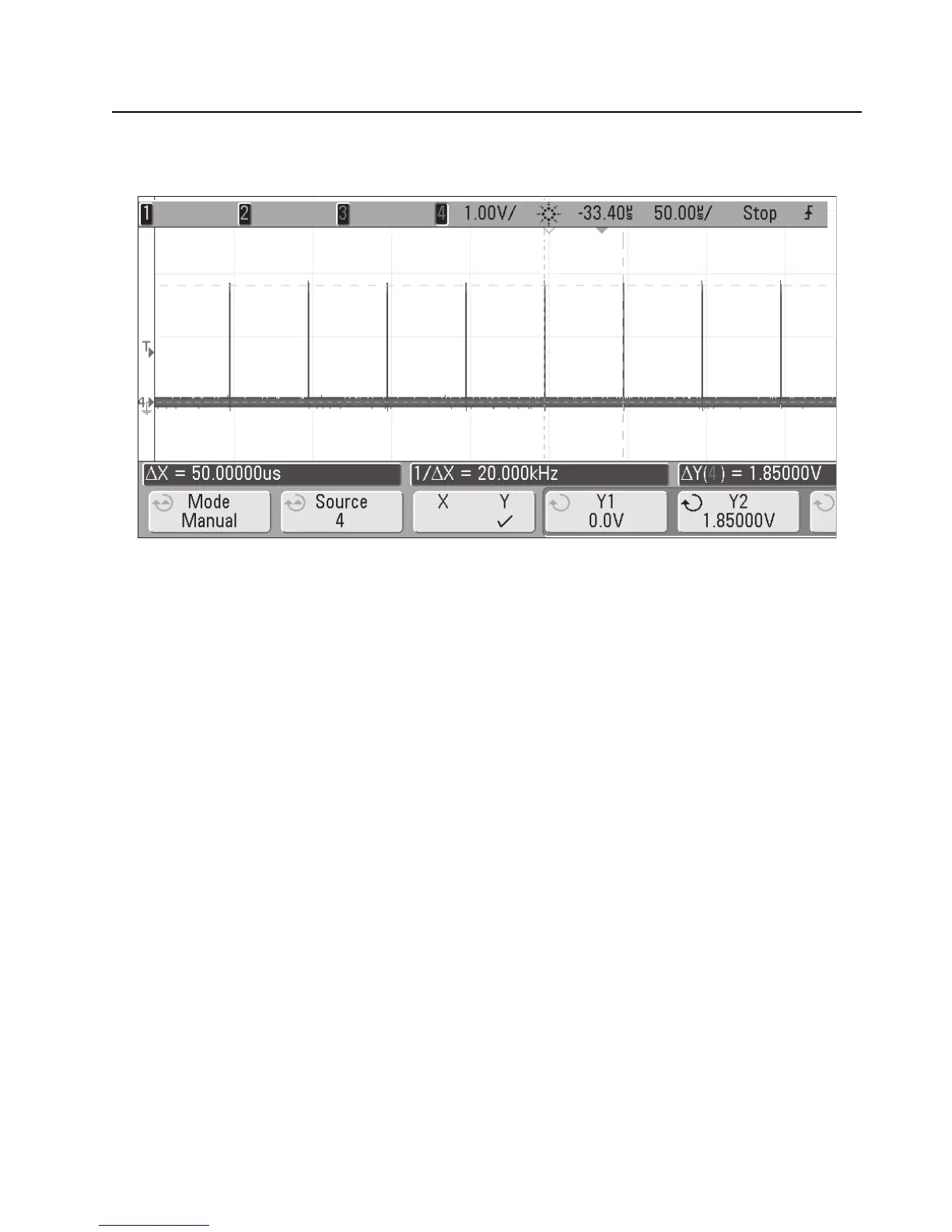

Figure 6-45. F2_TIMER_OUT clock from CPLD into OMAP for eMMC operation
