Troubleshooting Waveforms: GPS 6-51
6.16.3 GPS UART (RX / TX) Data

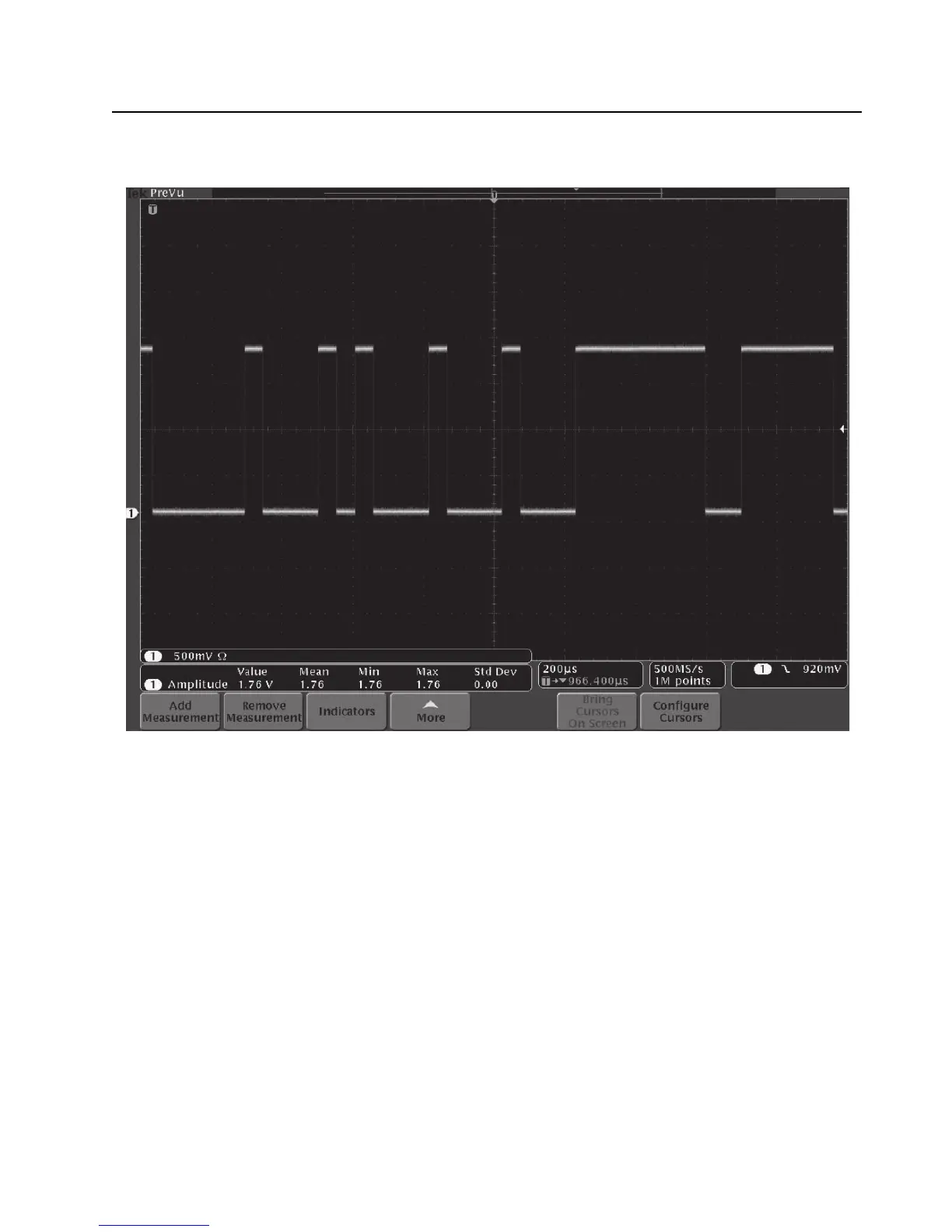

Trace 1: Trace recorded at TP2407 (TX) / TP2408 (RX) of Expansion Board.
Figure 6-49. GPS UART DATA Waveforms
