Troubleshooting Waveforms: I2C BUS 6-23
6.7.2 SCL 5V
Trace 1: Trace recorded at R2204.

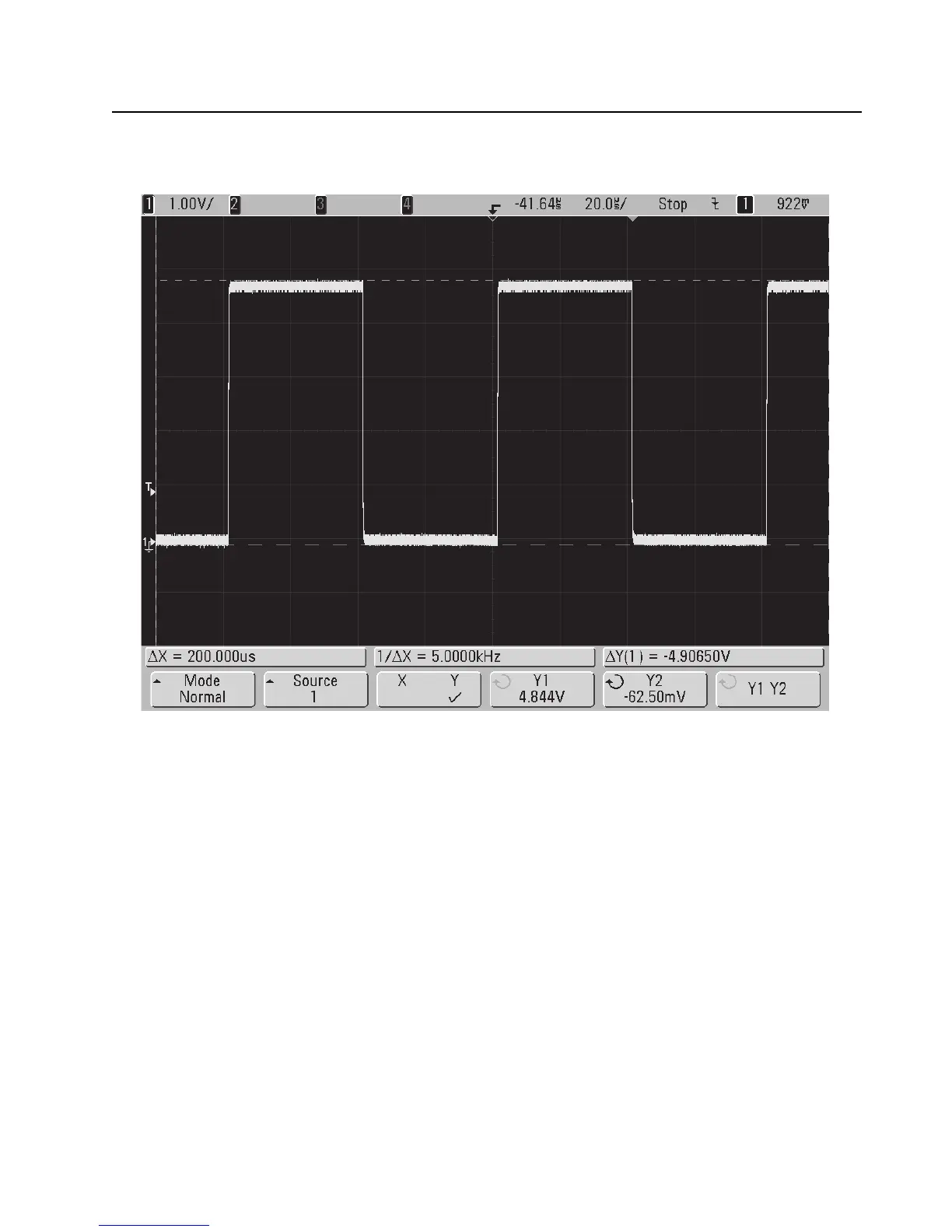

Figure 6-21. I2C Bus – SCA 5V Waveform
