4
Introduction

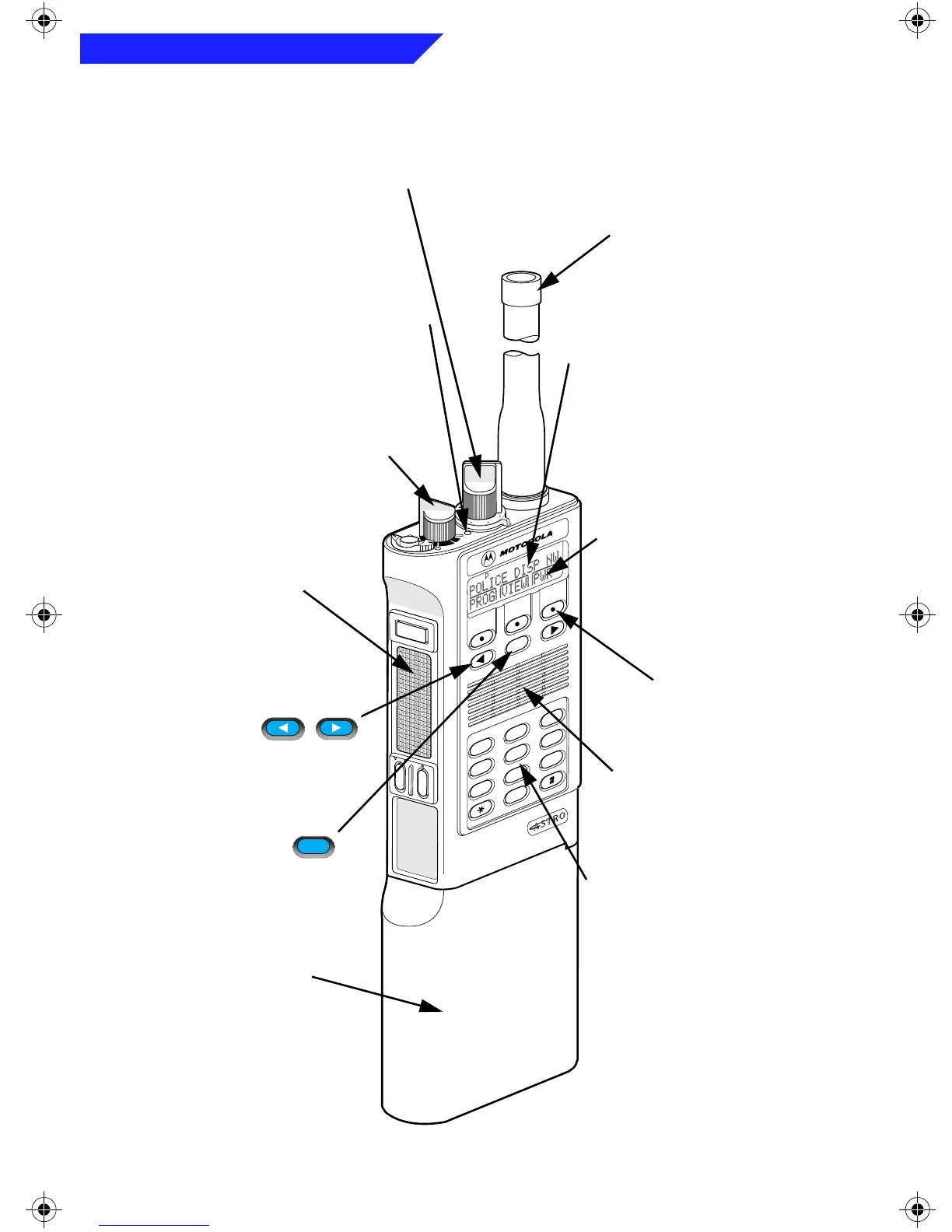

Switches, Buttons, Knobs, and Indicators
1
4
GHI
7
P
RS
2
ABC
5
JKL
8
TUV
3
DEF
6
MNO
9
WXY
0
HOME
7
9
5
3
1
1
A
16-Position Select Knob
Selects the operating system (zone)
and/or specific channel.
Bicolor LED
Indicates the radio’s operating status;
Red =Transmitting
Blinking Red = Channel Busy or Low Battery
Blinking Green = Receipt of Individual Call
On/Off/Volume Control Knob
Turns the radio on and off and
adjusts the volume level.
Push-To-Talk
(PTT) Switch
Puts the radio in the
transmit (send) mode.
Arrow Keys
Used to scroll through
softkeys and lists.
Home Key
Returns you to the
home display.
HOME
Battery
Rechargeable, 7.5Vdc
power source.
3 x 4 Alphanumeric Keypad
(Model III Only)
Provides interface to your radio’s
features; arranged and functions
like a standard telephone
keypad.
Speaker/Microphone
Accepts and emits audio.
Softkey Buttons
Selects “softkey” features.
Softkeys
(bottom display line of LCD)
Display of radio features
controlled by softkey buttons.
Liquid Crystal Display (LCD)
Provides visual information
(status indicator line, plus two display
lines with 14 characters maximum on
each display line).
Antenna
Radiates and receives
radio-frequency energy.
Introduction Page 4 Wednesday, April 10, 1996 12:11 PM
