Accessories 2 - 17

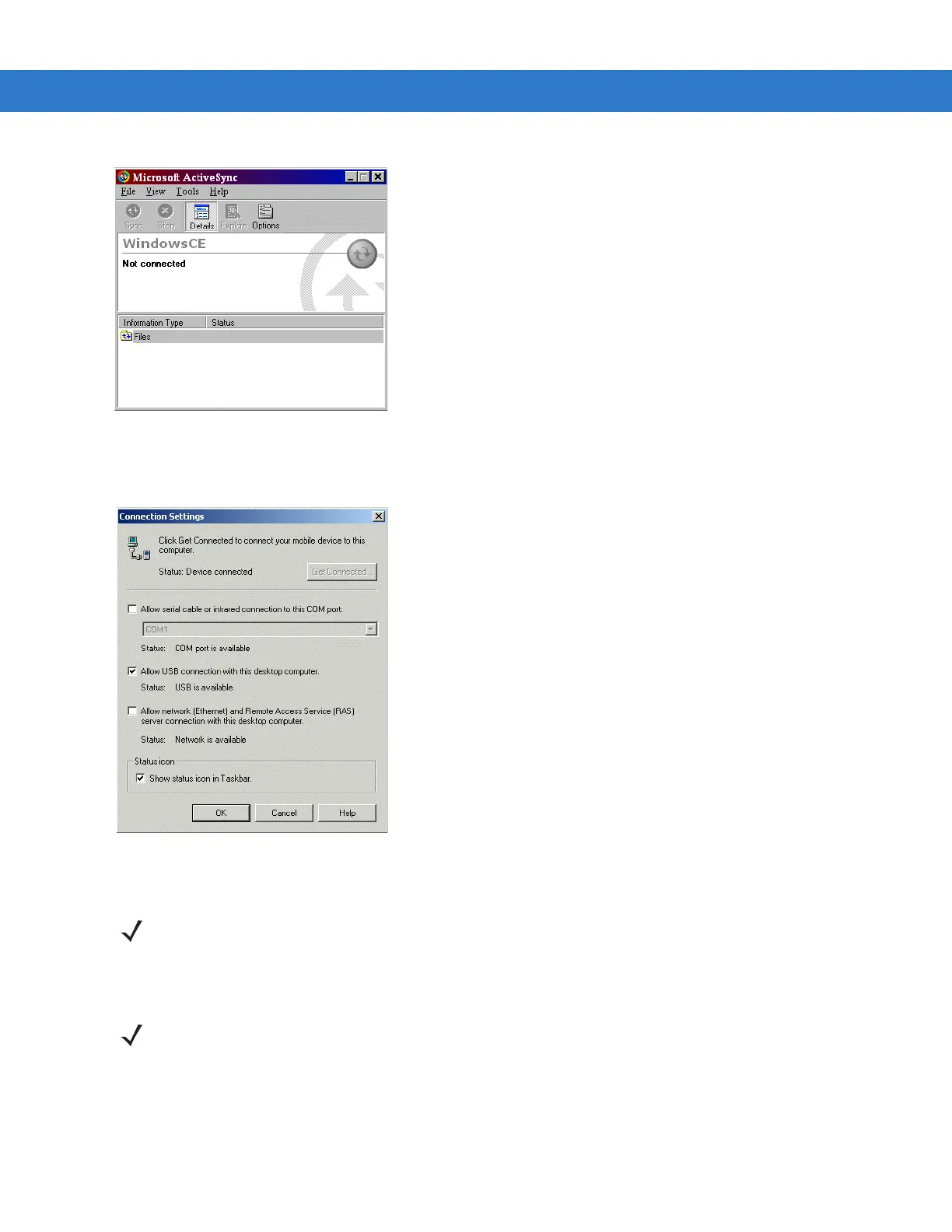

Figure 2-17 ActiveSync - Not Connected
12. In the ActiveSync window, select File > Connection Settings and ensure the selections shown in Figure 2-18
are made.
Figure 2-18 USB Connection Settings
13. Click OK to save any changes made.
14. Connect the mobile computer to the host computer. See Figure 2-2 on page 2-3 to set up a Single Slot
Serial/USB Cradle, or see Figure 2-10 on page 2-12 to set up a cable.
15. Upon connection, synchronization occurs automatically.
NOTE Assign each mobile computer a unique device name. Never try to synchronize more than one mobile computer
to the same name.
NOTE The cradle requires a dedicated port. It cannot share a USB port with any other device. Refer to the computer
user manual to locate the USB port(s).
