Troubleshooting Flow Chart for 25 W Transmitter Section 4: 3-5

66881091C63-F

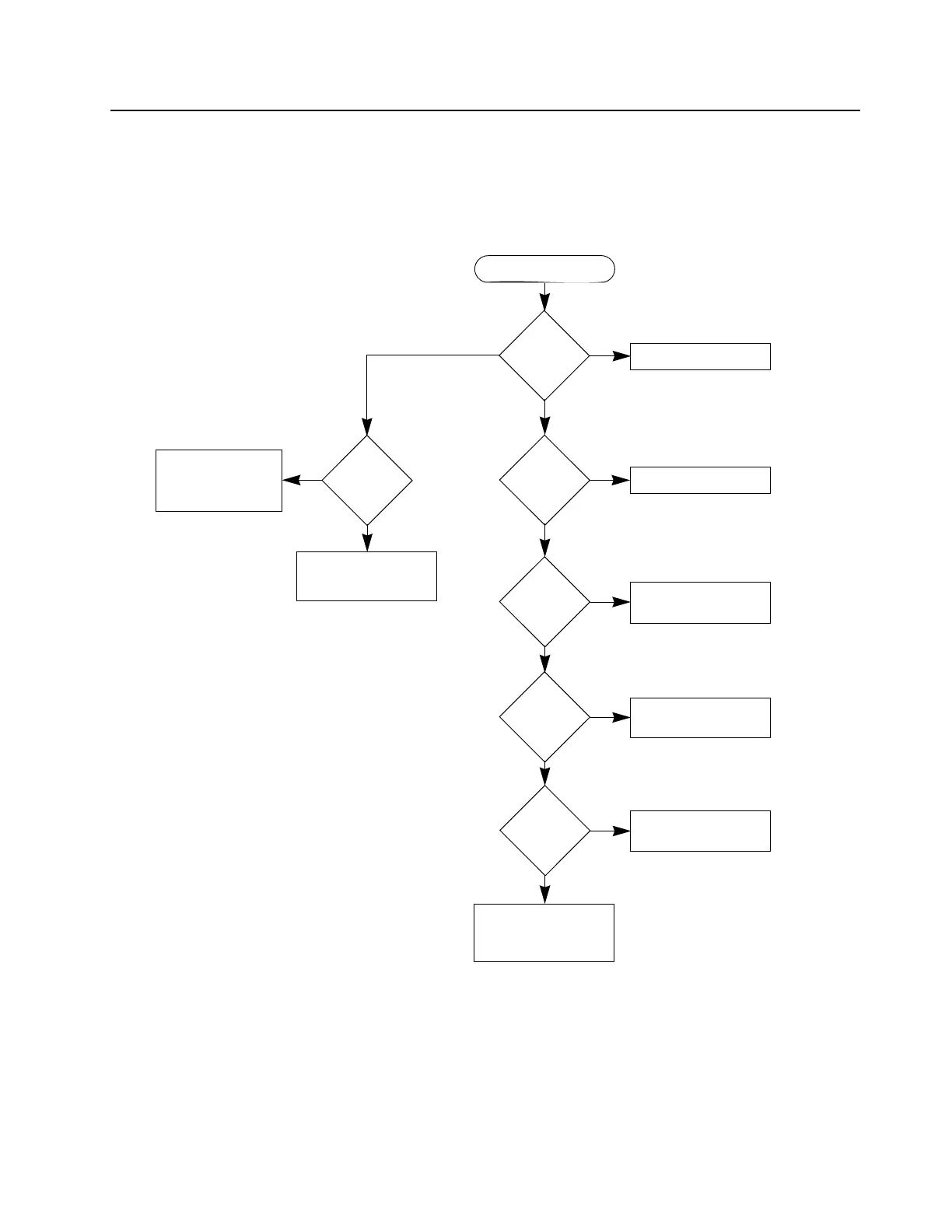

2.2 Troubleshooting Flow Chart for 25 W Transmitter (Sheet 3 of 3)

Check Final PA Stage

1-4V

Bias 2 DC

Voltage at

TP3406?

YES

RF Voltage

at TP3401

>100mV?

YES

RF Voltage

U3401 Pin 6

>3V?

Supply

Replace Q3441

Check FGU (U3301)

Check Components

between TP3401 &

C3417

YES

ASFIC

U0221 Pin 6

1-4V DC?

Check Bias Tuning

before replacing ASFIC

U0221

Check Components

between ASFIC and

Q3441 before

replacing Q3441

YES

RF Voltage

Q3421 Gate

>1V?

Check Components

between C3417 &

Q3421

YES

RF Voltage

Q3441 Gate

>4V?

Check Components

between Q3421 &

Q3441

Check Components

between Q3441 &

Antenna Connector

Voltage
