Troubleshooting Flow Chart for 25 W Transmitter Section 6: 3-3

6881091C63-F

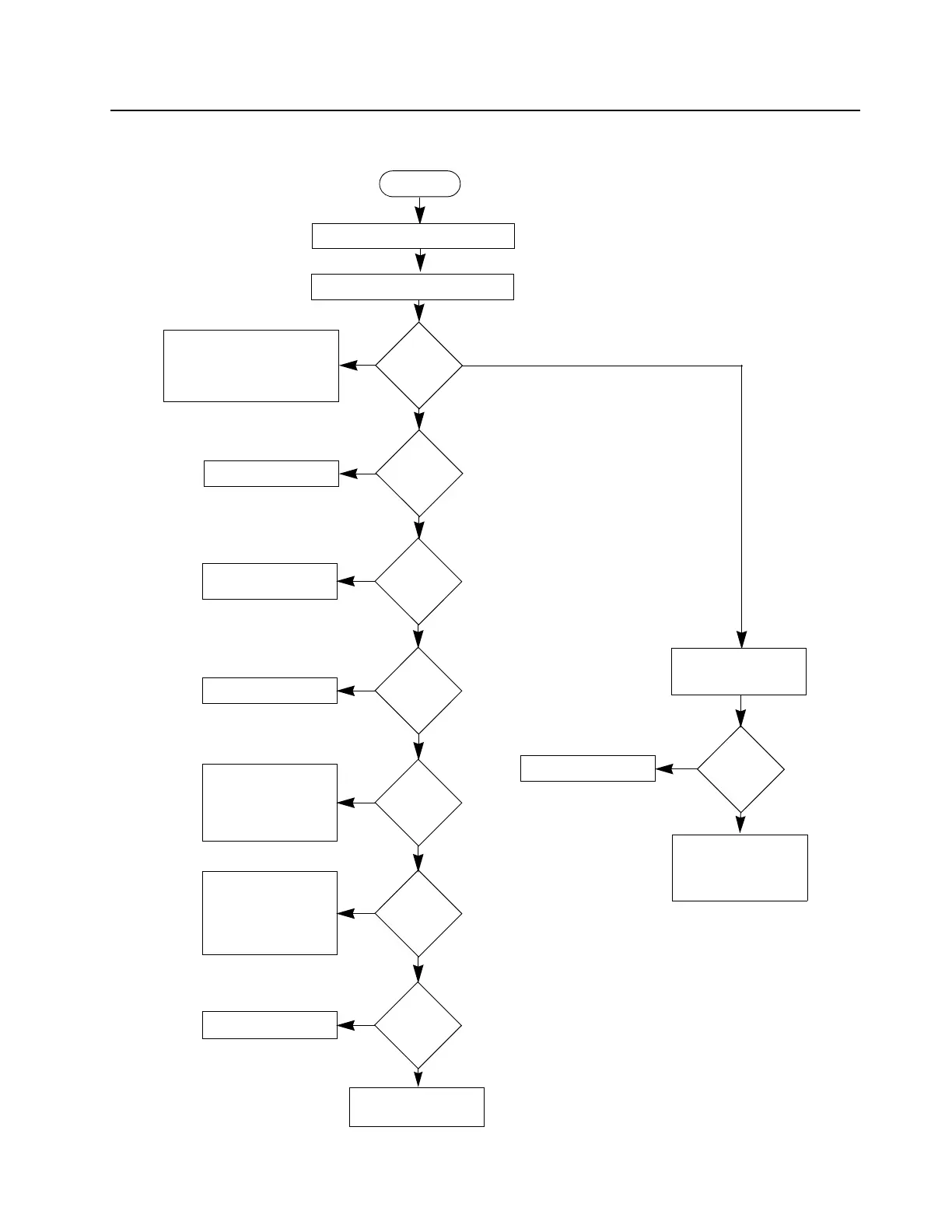

2.0 Troubleshooting Flow Chart for 25 W Transmitter (Sheet 1 of 3)

Current

increase

when

keyed?

YES

START

Check if Pressure Pad closes S5440

Check Components between

Q5441 and RF Output,

Antenna Switch

D5471,D5472,Q5472,

VR3471,Q3471

>500mA & <4A

>4A

<500mA

Check PA Stages

Control

Voltage at

TP5402

>1V

Short TP5403 to

Ground

YES

Voltage at

TP5402

rises?

Check PA Stages

YES

PCIC U5501

Pin 14 9.3V

DC?

Check 9.3 V Regulator

U0641

YES

PCIC U5501

Pin 16 >4V

Replace PCIC U5501

YES

TP5404

9.1V DC

If U5201 Pin 2 is high,

replace PCIC

U5501,otherwise

check controller and

FGU

YES

TP5403

>0.5V DC?

Replace PCIC U5501

Check Forward Power

Sense Circuit (D5451)

Check Forward Power

Sense Circuit (D5451)

YES

PCIC U5501

Pin 5 > 1V

DC?

Check Power Setting,

Tuning & Components

between PCIC Pin 5

and ASFIC (U0221)

Pin 4 before replacing

ASFIC

No power or low power when keyed
