Section 7: 3-1

6881091C63-F

Chapter 3

TROUBLESHOOTING CHARTS

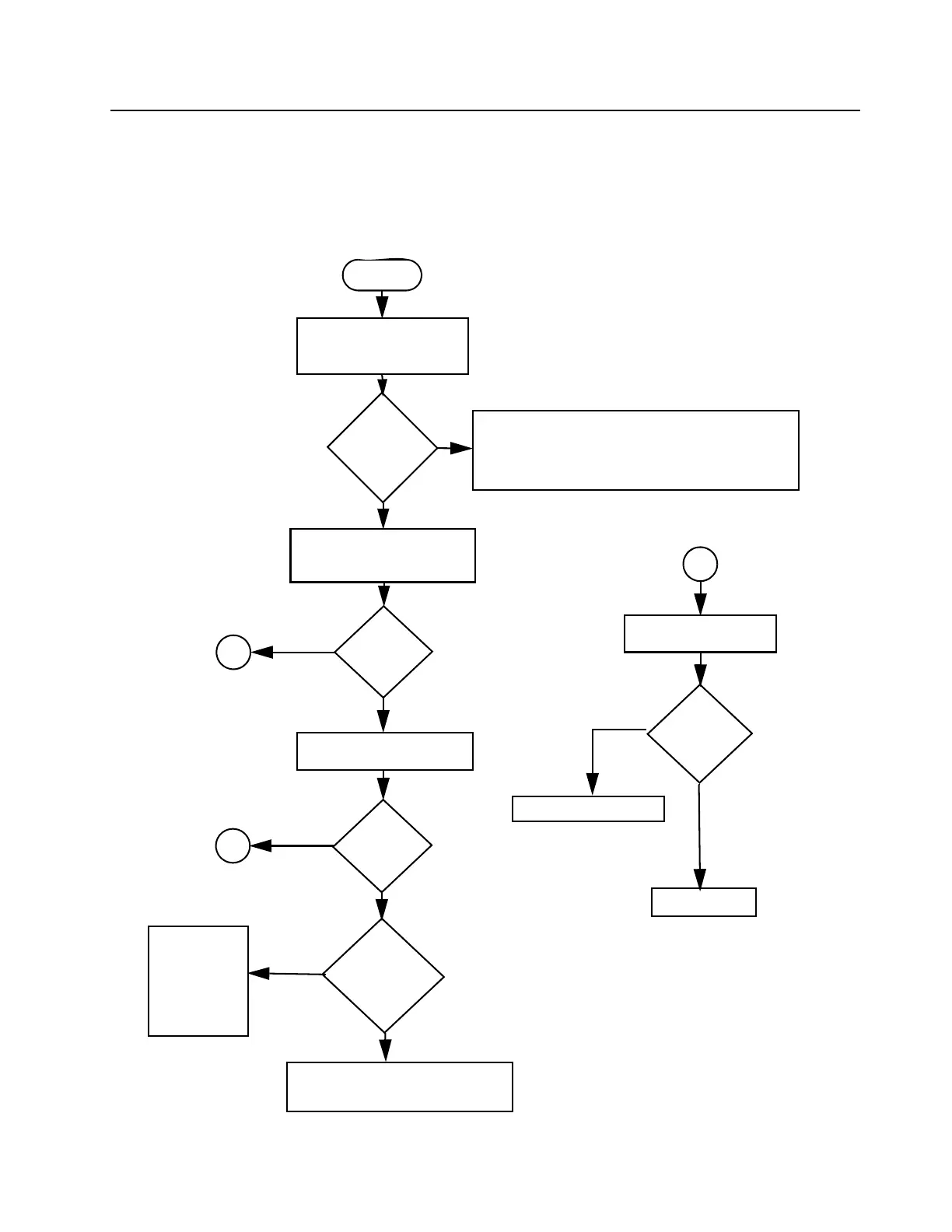

1.0 Troubleshooting Flow Chart for Receiver (Sheet 1 of 2)

Bad SINAD

Bad 20dB Quieting

No Recovered Audio

START

Audio at pin 8

of U1103?

Check Controller (in the case of no audio).

Or else go to “B”

Yes

Spray or inject 10.7MHz

into XTAL Filter FL1102.

Audio heard?

Yes

Check 2nd LO

(10.245MHz) at

LO present?

Yes

Check

voltages on

U1103. OK?

Biasing OK?

Yes

Check Q1106 bias

for faults.

Replace Q1106.

Go to B

Yes

Check

circuitry

around

U1103.

Replace

U1103 if

Check circuitry around Y1101.

Replace Y1101 if defect.
