Section 2: 3-1

6881091C63-F

Chapter 3

TROUBLESHOOTING CHARTS

1.0 Control Head CDM750 / PRO3100 Troubleshooting Flow Charts

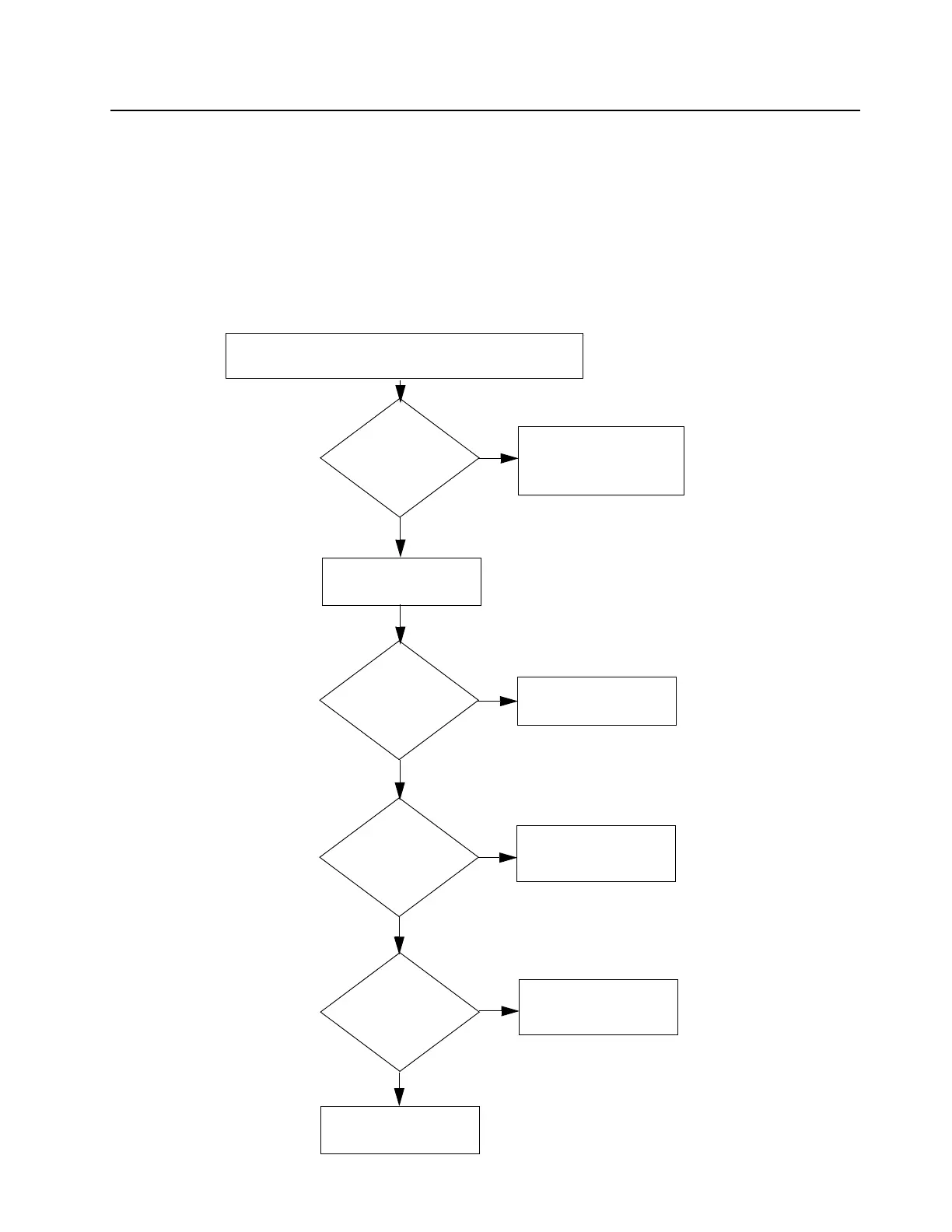

1.1 Troubleshooting Flow Chart for On/Off

Radio does not turn on when On/Off/Volume Knob is

pressed

YES

R0823 Pin TAB

= 5V?

R0823 Pin TAB1

when pressed

= 5V?

Check / Replace

Volume Pot R0823

Check / Replace

R0822 / VR0822 /

D0822 / C0822

YES

J0801 Pin 2

> 10V?

Check / Replace

Q0821

Check / Replace

Q0822 / R0821

YES

J0801 Pin 2

=5V?

Check / Replace

D0821 / R0852

Press and hold

On/Off/Volume Knob
