Section 5: 3-1

6881091C63-F

Chapter 3

TROUBLESHOOTING CHARTS

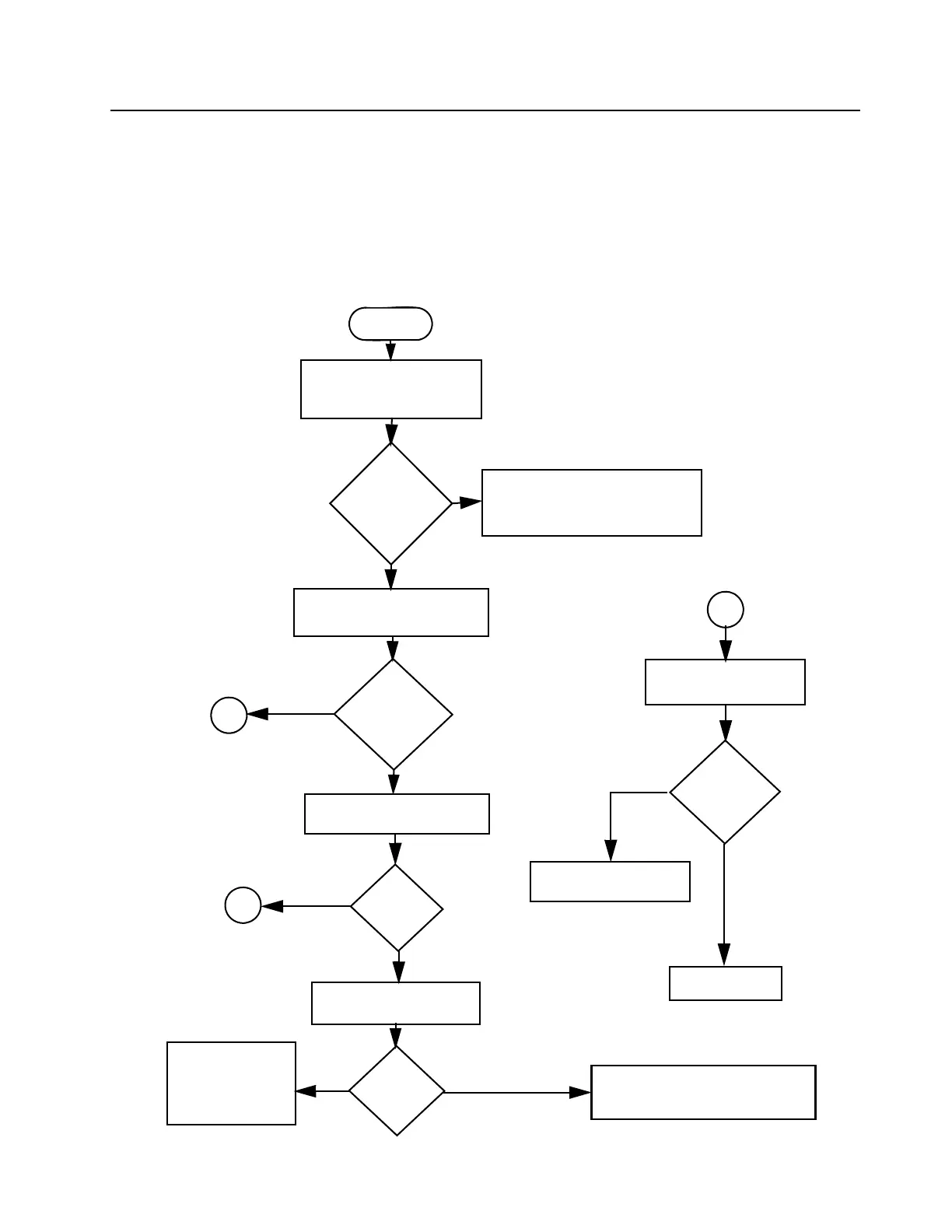

1.0 Troubleshooting Flow Chart for Receiver (Sheet 1 of 2)

Bad SINAD

Bad 20dB Quieting

No Recovered Audio

START

Audio at

pin 8 of

U3101?

Check Controller

(in the case of no audio)

OR ELSE go to “B”

Yes

Spray or inject 44.85MHz

into XTAL Filter FL3101

Audio heard?

Yes

Check 2nd LO

(44.395MHz) at C3135

LO present?

Yes

Check voltages on

U3101

Biasing OK?

Yes

Check Q3102 bias

for faults

Replace Q3102

Go to B

Yes

Check circuitry

around U3101.

Replace

U3101 if defect

Check circuitry around Y3101.

Replace Y3101 if defect

Voltages

OK?
