Control Head CDM1250 / PRO5100 / CDM1550 Series / PRO
7100 Troublesh
ooting Flow Charts
Section 2: 3-3
6881091C63-F
2.0
Control Head CDM1250 / PRO5
100 / CDM1550 Series / PRO7100
T
roubleshooting Flow Charts

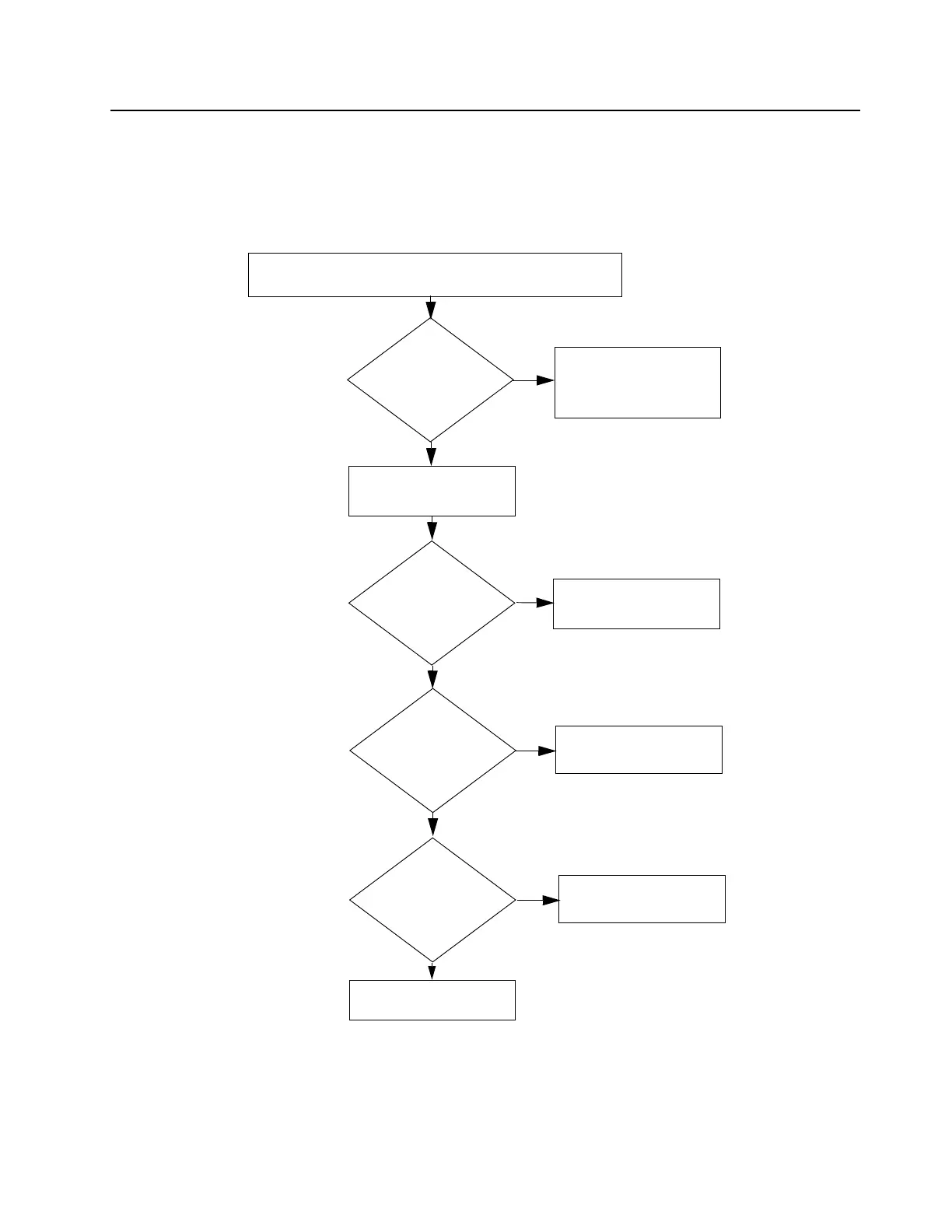

2.1
T
roubleshooting Flow
Chart for On/Off
Radio does not turn
on when On/Off/Volume
Knob is
pressed
NO
YES
YES
NO
R0823 Pin TAB
= 5V?
R0823 Pin TAB1
when pressed
= 5V?
Check / Replace
Volume Pot R0823
Check / Replace
R0822 / VR0822 /
D0822 / C0822
NO
YES
J0801 Pin 2
> 10V?
Check / Replace
Q0821
Check / Replace
Q0822 / R0821
YES
NO
J0801 Pin 2
=5V?
Check / Replace
D0821 / R0852
Press and hold
On/Off/Volume Knob
40
42
