Section 6: 2-8 UHF Band 2 (450–512/527 MHz) 1–25 W Frequency Synthesis
6881091C63-F
4.3 Voltage Controlled Oscillator (VCO)
The Voltage Controlled Oscillator (VCO) consists of the VCO/Buffer IC (VCOBIC, U5301), the TX
and RX tank circuits, the external RX buffer stages, and the modulation circuitry.

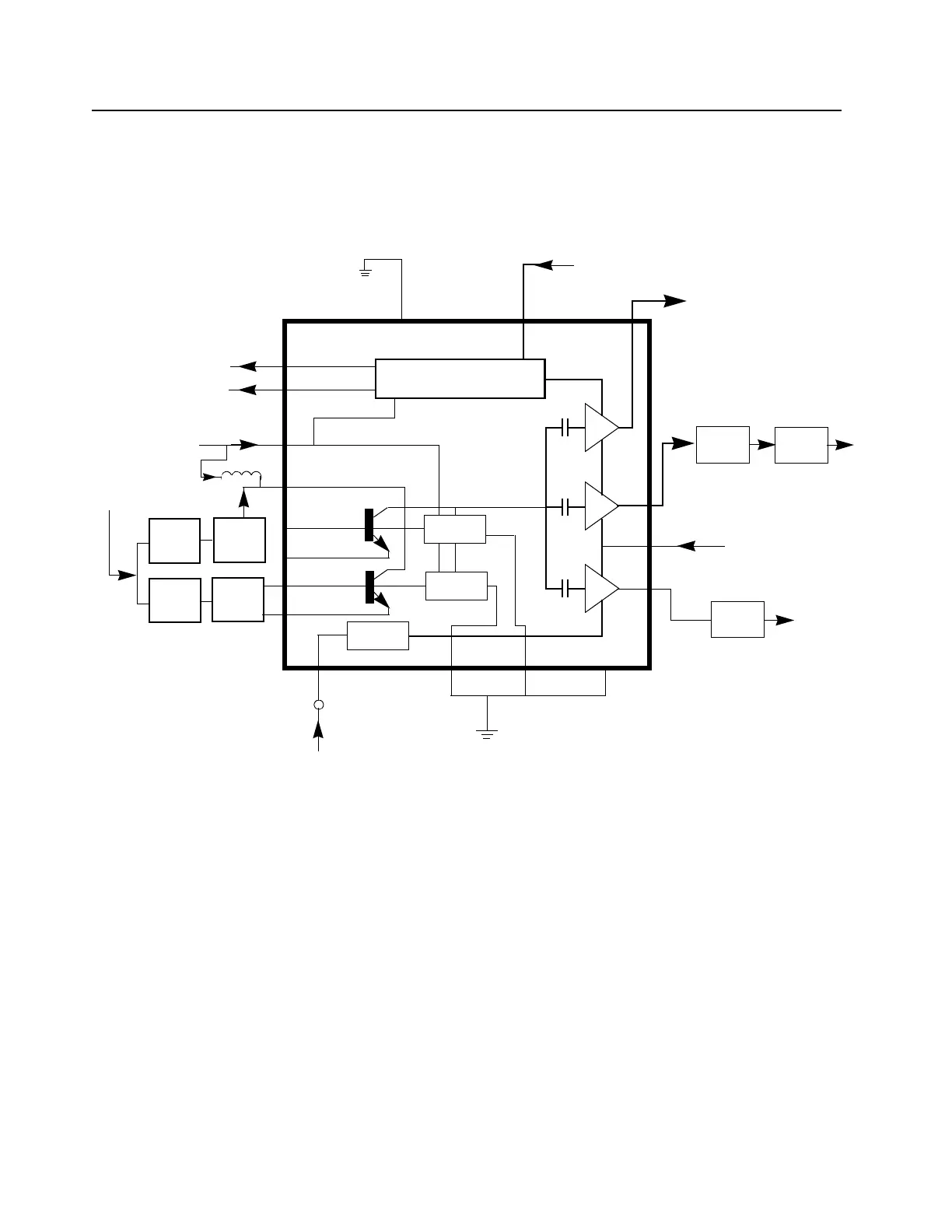

Figure 6-4 UHF VCO Block Diagram
The VCOBIC together with Fractional-N synthesizer (U5201) generates the required frequencies in
both transmit and receive modes. The TRB line (U5301 pin 19) determines which tank circuits and
internal buffers are to be enabled. A high level on TRB enables TX tank and TX output (pin 10), and
a low enables RX tank and RX output (pin 8). A sample of the signal from the enabled output is
routed from U5301 pin 12 (PRESC_OUT), via a low-pass filter, to pin 32 of U5201 (PREIN).
A steering line voltage (VCTRL) between 3.0V and 10.0V at varactor diode CR5311 will tune the full
TX frequency range (TXINJ) from 450 MHz to 512 (or 527) MHz, and at varactor diodes CR5301,
CR5302 and CR5303 will tune the full RX frequency range (RXINJ) from 405 MHz to 482 MHz. The
tank circuits uses the Hartley configuration for wider bandwidth. For the RX tank circuit, an external
transistor Q5301 is used in conjunction with the internal transistor for better side-band noise.
Similarly, an external transistor Q5311 is used in the TX tank circuit.
