Section 8: 3-2 Troubleshooting Flow Chart for Receiver

6881091C63-F

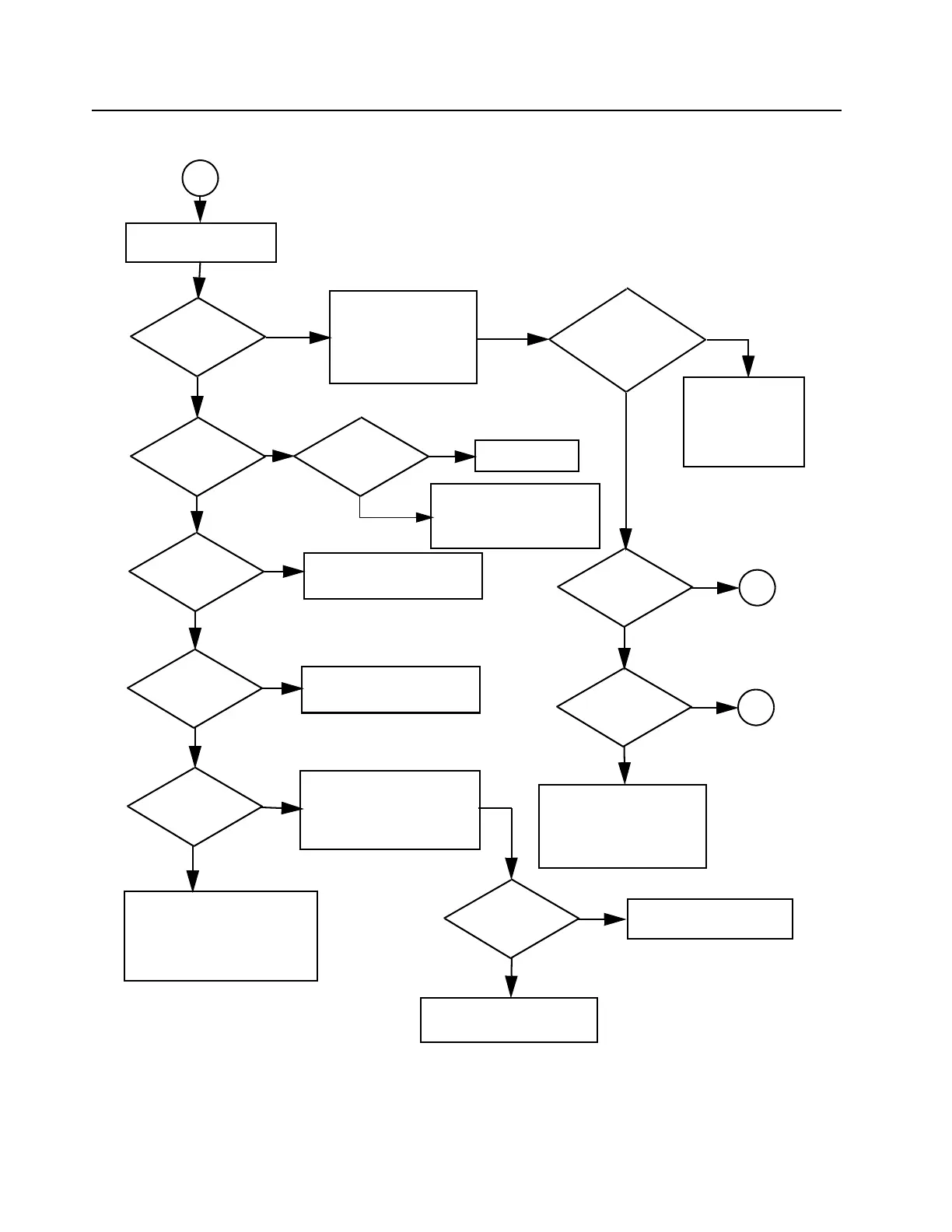

1.1 Troubleshooting Flow Chart for Receiver (Sheet 2 of 2)

IF Signal at

C3035?

RF Signal at

T3001?

RF Signal at

C3012?

RF Signal at

C3008?

RF Signal at

C3474?

No or

Check Harmonic Filter

J3401 and

Antenna Switch

D3471,D3472,L3472

Check filter between C3474

& C3008. Check tuning

voltage at R3019

Inject RF into J3401

Is tuning

voltage OK?

Yes

Check RF amp

(Q3001) Stage

Check filter between

C3012 & T3001

Yes

Check T3001, T3002,

D3031, R3030-R3034,

L3032, C3034 and C3035

Yes

1st

LO level OK?

Locked?

Yes

Check FGU

Yes

Trace IF signal from

C3035 to Q3101.

Check for bad XTAL

filter

Yes

IF signal at Q3102

collector?

Before replacing

U3101, check

U3101 voltages

Yes

Check for 5VDC

Is 9.3V

present?

Check Supply Voltage

circuitry. Check Q0681,

U3211 and U0641

Check U3501

Check varactor filter

Yes

weak RF
