Section 11: 3-4 Troubleshooting Flow Chart for 45 W Transmitter

6881091C63-F

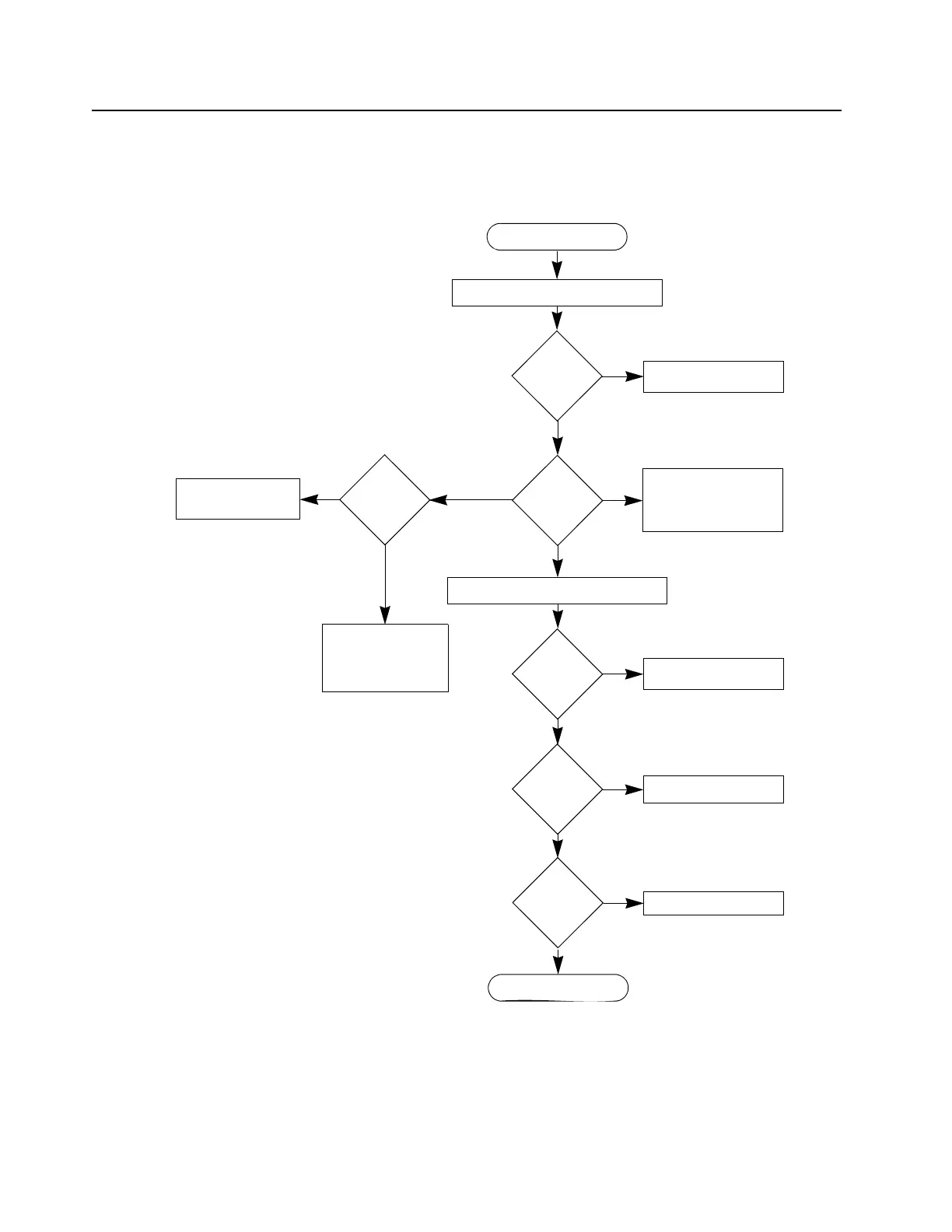

2.1 Troubleshooting Flow Chart for 45 W Transmitter (Sheet 2 of 3)

Check PA stages

No power or low power when keyed

Measure DC voltage at pin 2 & 3 of U3401

YES

DC voltage

at U3501

pin 23 =0?

2-6

DC voltage

at U3402-1

pin 1?

YES

Pin 2 volt-

age 0.62 *

voltage at

pin 1?

If U3201 pin 2 is high,

replace PCIC

Replace U3401

YES

voltage at

U3402-1 pin

3 = 8.8V?

Check S3440,

R3442 and R3443

YES

Pin 3 voltage

0.51 *

voltage at

pin 1?

Replace U3401

DC voltage at

TP3408?

ELSE

Retune MOSBIAS_1

Check final PA stage

2-6V

<2V

Check resistive

network at pins 2 & 3 of

U3402-1 before

replacing U3401

Check Q3442 and

resistive network at

U3402-1 pin 3

before replacing

U3401
