General Operation V235 GSM
General Operation
Controls, Indicators, and Input / Output (I/O) Connections
The V235 telephone’s controls are located on the sides of the device and on the
keypad. Indicators, in the form of icons, are displayed on the LCD (see Figure 2).
V235 phones have an audible alert transducer on the top and I/O connectors,
consisting of a headset jack and an accessory port, located on the top and bottom of
the phone. See Figure 1.
“Soft keys” refer to non-labeled keys that correspond to text options displayed on
the screen. The left and right soft keys perform the function shown in the corners
of the display. The right key will usually select an option whereas the left key will
usually exit a function or return to a previous screen.
The menu key opens the initial menu structure, or allows access to a submenu
whenever
M appears on the display.
Color Display
The V235 wireless phone features a 65k color CSTN Thin Film Transistor (TFT)
128 x 160 pixel display.The flip contains a 96x32 CLI display.
031935o

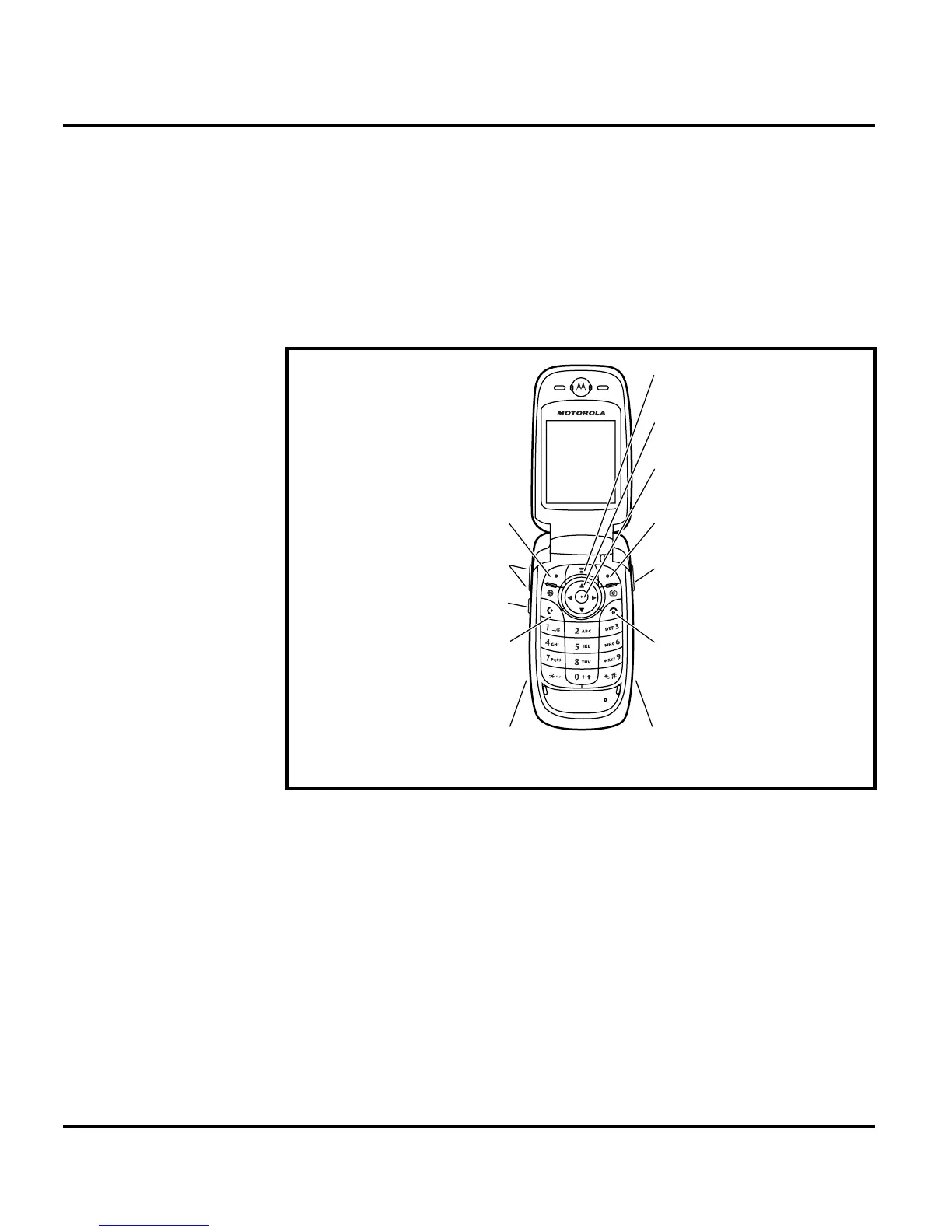

Figure 1. Controls, indicators, and I/O
Left Soft Key
Navigate menus.
Select menu items.
Open menus.
Volume Keys
Charge up.
Voice dial.
Right Soft Key
Turn on & off,
hang up, exit menus.
Go handsfree.
Make & answer calls.
PTT/Smart Key
