30 April 03, 2006 6809495A43-C
Disassembly V235 GSM
Removing and Replacing the Microphone
1. Remove battery cover, battery, SIM, antenna, rear housing, and transceiver
board assembly as described in the procedures.
2. Use the disassembly tool to pry the microphone out of the front housing as
shown in Figure 11.
3. To replace, insert the microphone into its place in the front housing. Ensure
that the elastomeric connector is facing upward. Press the microphone firmly
into place.
4. Replace the transceiver board assembly, display flex connector, rear housing
assembly, antenna, SIM, battery, and battery cover as described in the
procedures.
040248o

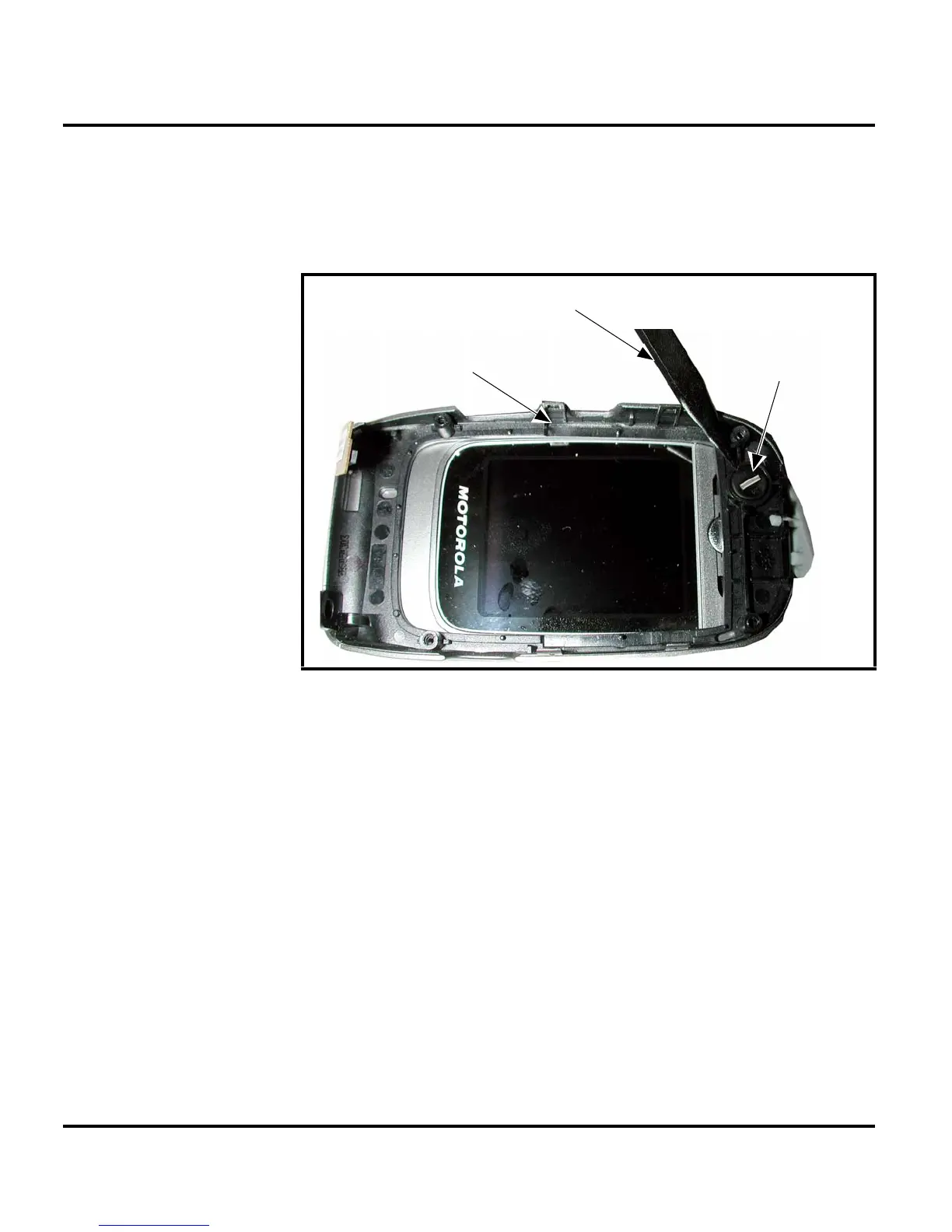

Figure 11. Removing the Microphone
Microphone
Disassembly Tool
Front Housing
