Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Flip Cover
1. Remove battery cover, battery, SIM, antenna, rear housing, transceiver board
assembly, and flip assembly as described in the procedures.
2. Insert the flat edge of disassembly tool into the top of the flip cover and pry
down flip cover to the bottom to release the flip cover (see Figure 14).
3. Slide the flip cover down to the bottom and lift the cover away from the flip
assembly.
4. To replace, align the flip cover to the flip assembly.
5. Carefully press the flip cover onto the flip assembly until all latches are fully
engaged.
6. Replace the flip assembly, transceiver board assembly, rear housing, antenna,
SIM, battery, and battery cover as described in the procedures.
060394o

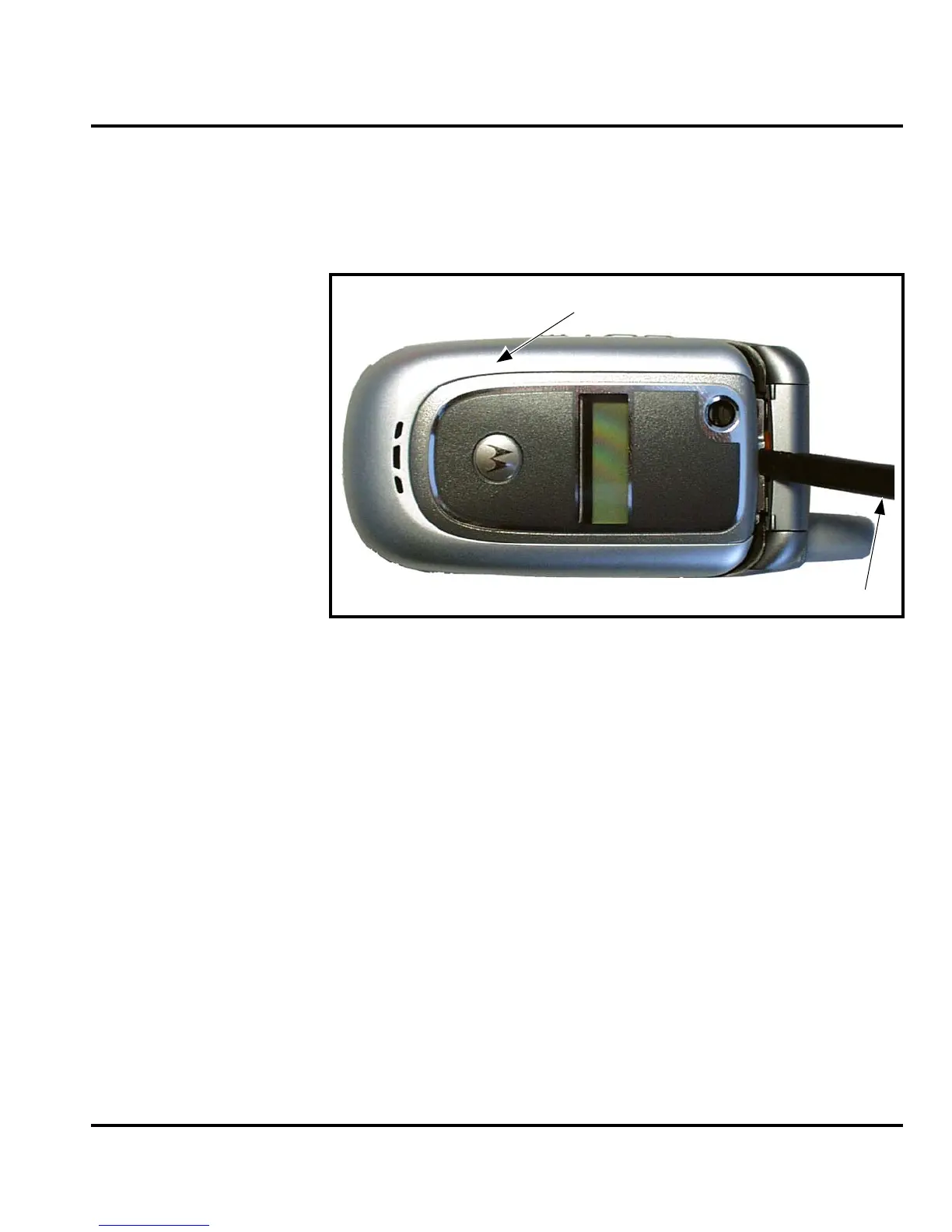

Figure 14. Removing the Flip Cover
Flip Cover
Disassembly tool
