34 April 03, 2006 6809495A43-C
Disassembly V235 GSM
Removing and Replacing the Display Assembly Bracket
1. Remove the battery cover, battery, SIM, antenna, rear housing, transceiver
board assembly, flip assembly, and flip assembly cover as described in the
procedures.
2. Use the Torx driver and a T6 bit to remove the 4 flip assembly screws from the
flip assembly (see Figure 15).
3. Use the disassembly tool to release the latches on the sides of the display
assembly.
4. Carefully lift the display bracket up and away from the display assembly.
5. To replace, align the display bracket over the display assembly.
6. Carefully and gently lower the display bracket onto the display assembly. Press
the display bracket into place so that all the latches are attached to the display
assembly.
7. Insert and tighten the four T6 screws to a torque setting of 16 Ncm.
8. Replace the flip assembly bezel, flip assembly, transceiver board assembly, rear
housing, antenna cap, SIM, battery, and battery cover as described in the
procedures.
050348o

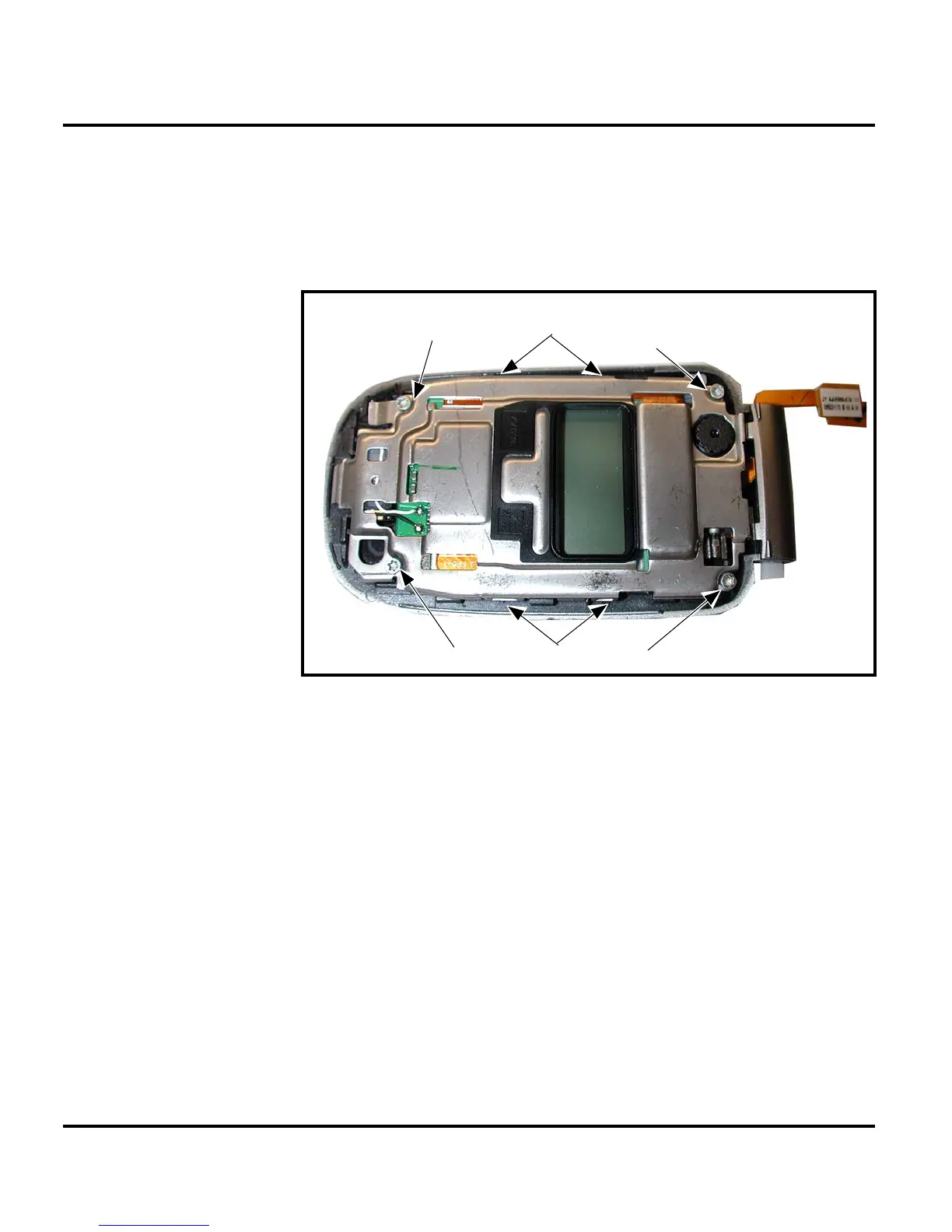

Figure 15. Removing the Flip Assembly Screws and Latches
Screw
Latch
Screw
Screw
Screw
Latch
