6809495A43-C April 03, 2006 23
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Antenna
1. Remove the battery door and battery as described in the procedures.
2. Carefully insert the disassembly tool under the speaker cover to release the 4
latches that secure the speaker to the rear housing.
3. To remove the antenna, by hand, rotate the antenna counterclockwise until
loose. See Figure 4.
4. When the antenna threads are completely disengaged, pull the antenna
straight out of the phone to remove.
5. To replace, insert the threaded end of the antenna carefully into the housing
and, after ensuring the threads are properly engaged, rotate clockwise. Tighten
firmly by hand.
6. Replace the SIM, battery and battery cover as described in the procedures.
050476o

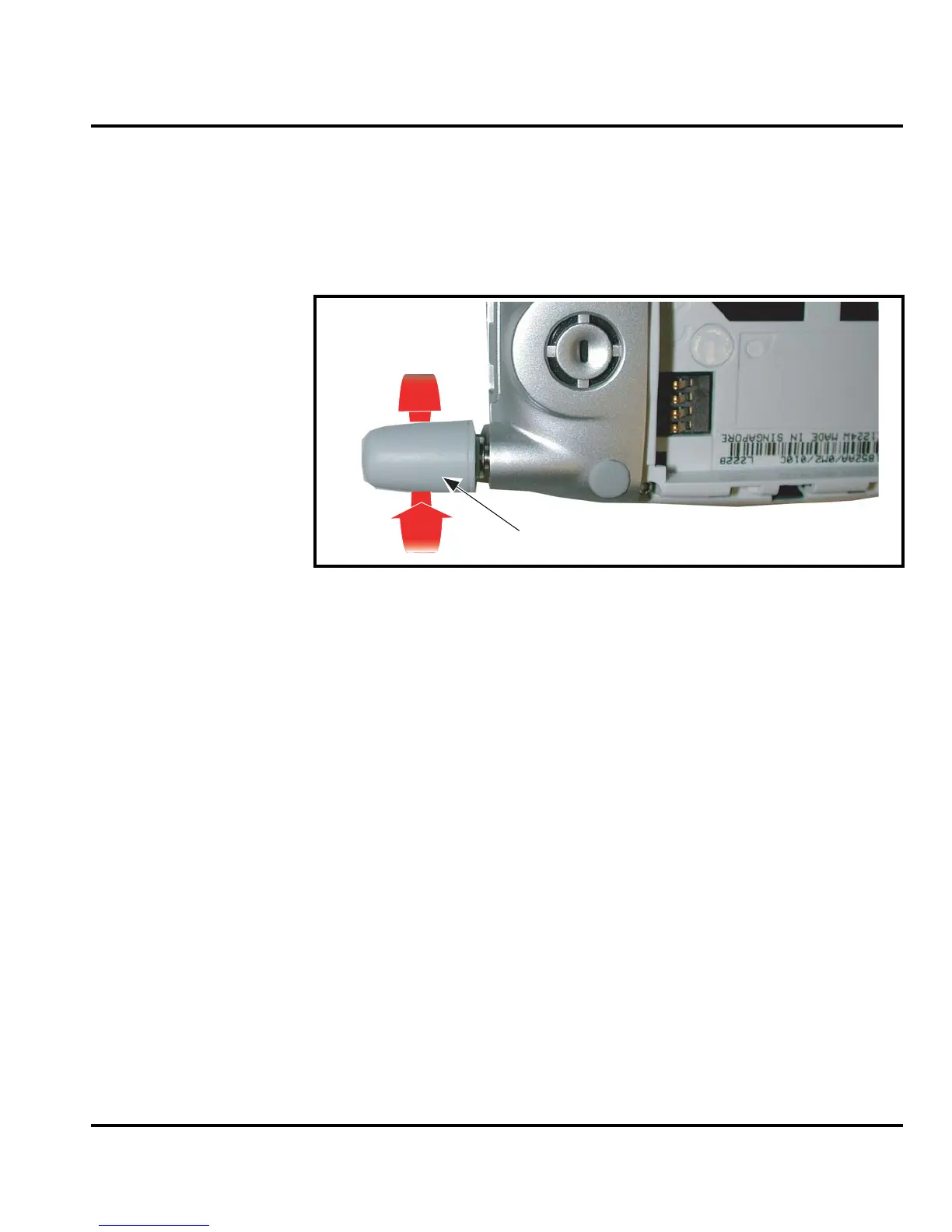

Figure 4. Removing the Antenna
G
Ensure antenna threads are properly engaged before tightening to prevent damage
to the antenna or housing.
Antenna
