26 April 03, 2006 6809495A43-C
Disassembly V235 GSM
Removing and Replacing the Transceiver Board Assembly
1. Remove the battery cover, battery, SIM, antenna, and rear housing as
described in the procedures.
2. Use the plastic tweezers to lift the transceiver board gasket away from the
transceiver board (see Figure 7) .
G
This product contains static-sensitive devices. Use anti-static handling procedures
to prevent electrostatic discharge (ESD) and component damage.
050480o

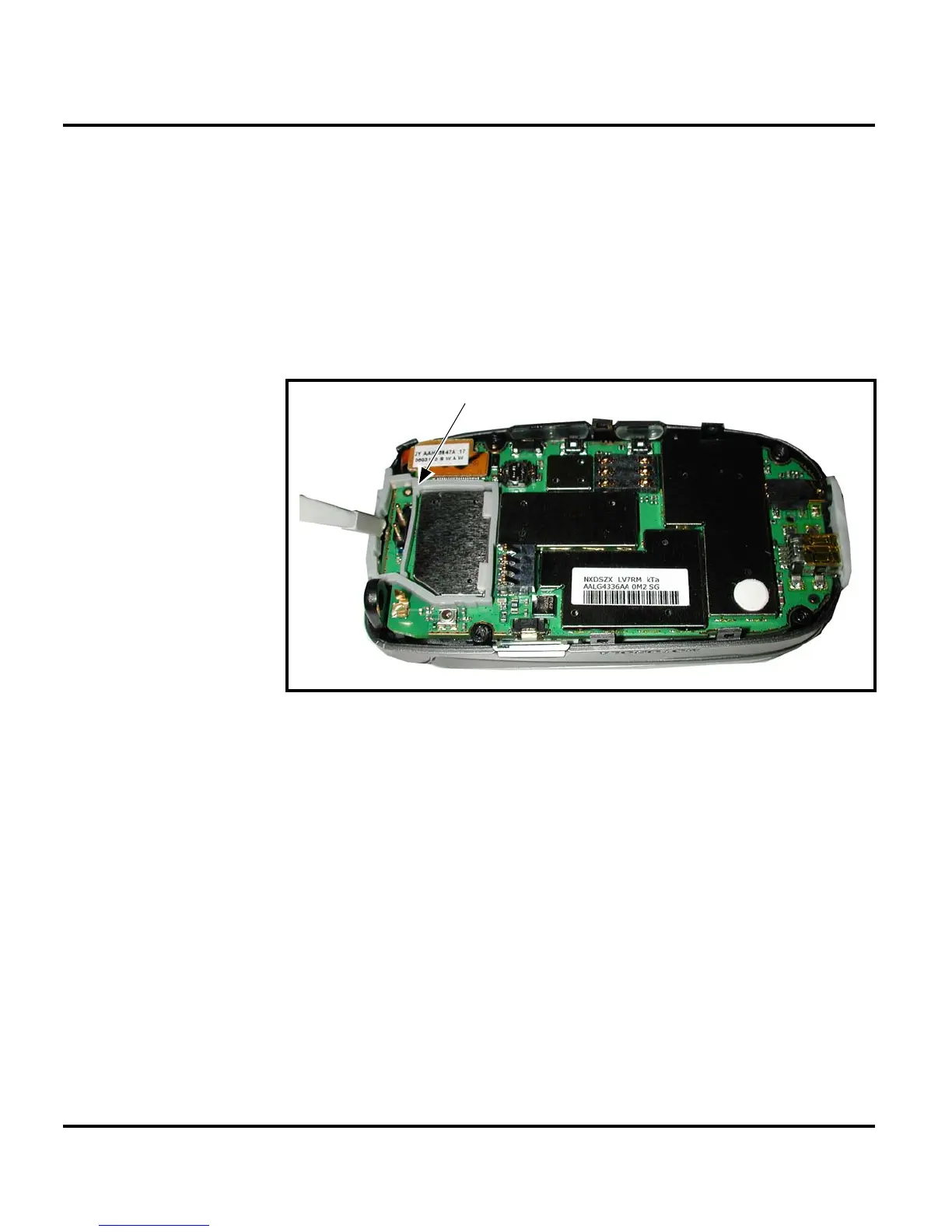

Figure 7. Removing the Gasket From the Transceiver Board
G
The flexible printed cable (FPC) (flex) is easily damaged. Exercise extreme care when
handling.
Gasket
