Level 1 and 2 Service Manual Disassembly
5. Carefully lift the rear housing away from the front housing and flip assembly.
6. To replace, carefully align the rear housing to the front housing and the flip
assembly, then press the rear chassis assembly down until the 2 housing
catches engage with the corresponding openings on the rear chassis assembly.
Press the housings together until the catches snap into place.
7. Replace the 4 transceiver screws and tighten to a final torque setting of 16 Ncm
or 1.5 inch pounds. Do not over tighten.
8. Replace the antenna, SIM, battery, and battery cover as described in the
procedures.
050479o

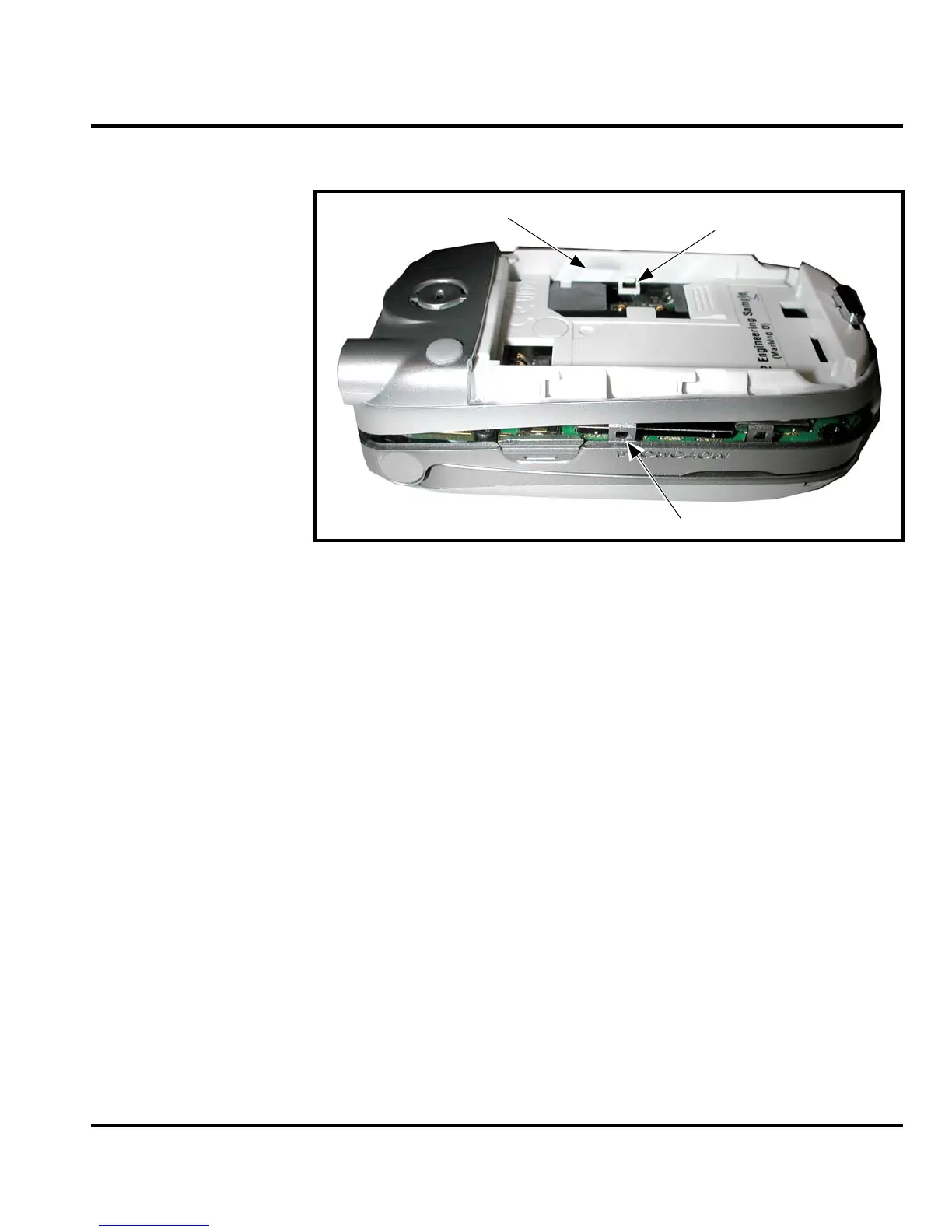

Figure 6. Removing the Rear Housing
Latch
Latch
Rear Housing
To Next Page
