Disassembly V235 GSM
Removing and Replacing the Display Module
1. Remove the battery cover, battery, SIM, antenna, rear housing, and
transceiver board assembly, flip assembly cover, flip display bracket, and
camera module as described in the procedures.
2. Use the disassembly tool to unseat the display flex connector (see Figure 19).
G
The flexible printed cable (FPC) (flex) is easily damaged. Exercise extreme care when
handling.
050491o

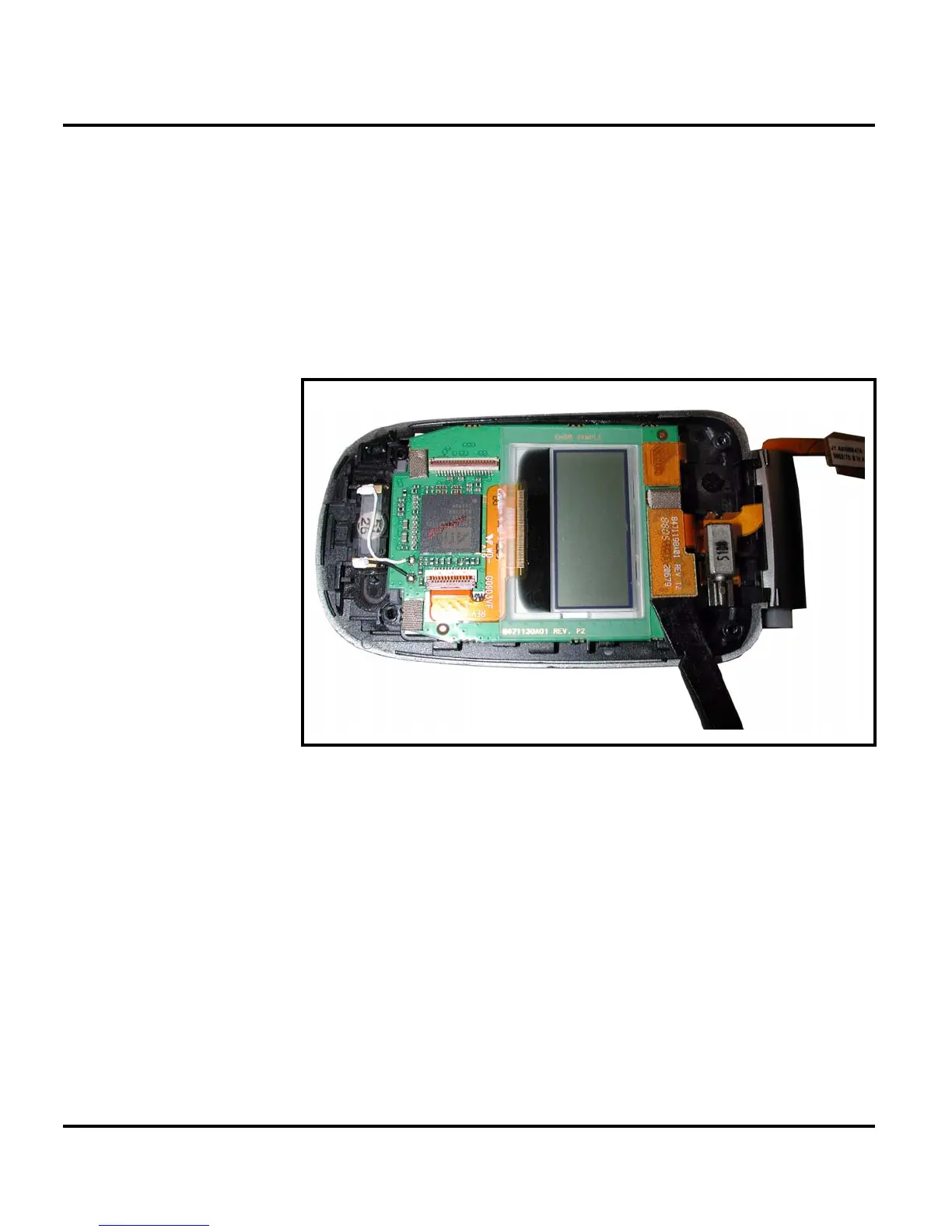

Figure 19. Display Flex Connector Removal
