6809495A43-C April 03, 2006 29
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Keypad, Volume/Smart and Voice Buttons
1. Remove battery cover, battery, SIM, antenna, rear housing, and transceiver
board assembly as described in the procedures.
2. Using the disassembly tool, lift the top part of the keypad assembly, which
includes the volume/smart buttons, and voice button away from the transceiver
board assembly (see Figure 10).
3. To replace, remove any protective covering to expose the keypad adhesive.
4. Carefully set the keypad volume/smart buttons and voice button assembly onto
the metal switchdome assembly. Ensure the volume/smart key keypads will
contact the switchdome assembly on the transceiver board when installed.
5. Insert the keypad into the front housing, ensuring the keys align properly with
the openings in the front housing.
6. Replace the transceiver board assembly, display flex connector, rear housing
assembly, antenna, SIM, battery, and battery cover as described in the
procedures.
050483o

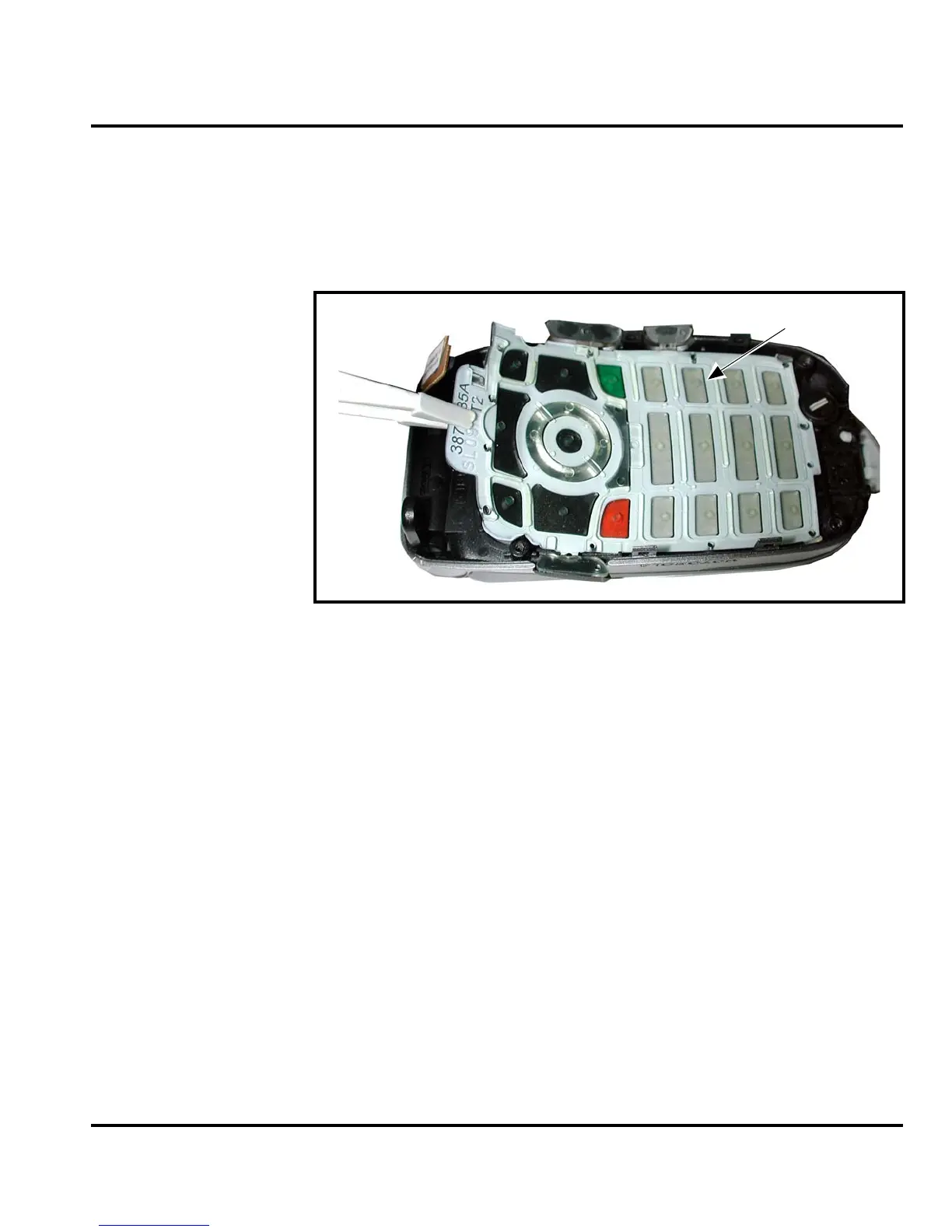

Figure 10. Removing the Keypad, Volume/Smart, and Voice Buttons
Keypad
