28 April 03, 2006 6809495A43-C
Disassembly V235 GSM
4. Lift the transceiver board assembly out of the front housing. See Figure 9.
5. To replace, insert the transceiver board assembly into the front housing with
the flex connector on top.
6. Insert the flex connector squarely into its mating connector on the transceiver
board and press firmly until it snaps into place.
7. Replace the rear housing, antenna, SIM, battery, and battery cover as
described in the procedures.
050482o

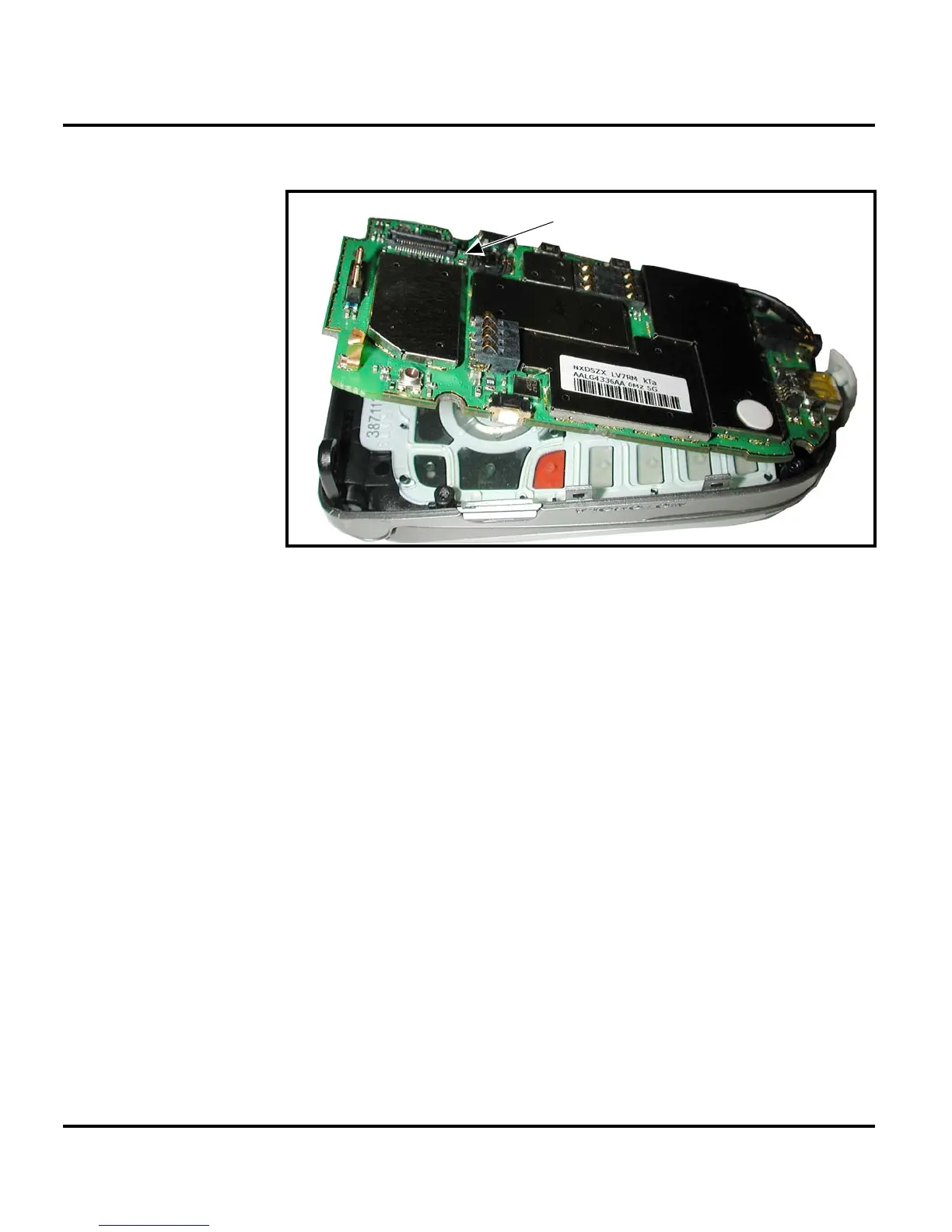

Figure 9. Removing the transceiver PC board assembly
➧
Be sure the volume/smart buttons and voice button are correctly positioned in
relation to the corresponding switches on the transceiver board. Verify operation of
the buttons after replacing the transceiver board.
Transceiver Board
