3. Carefully work the flat end of the disassembly tool under the flex connector
and remove the connector from the transceiver board. See Figure 8.
050477o

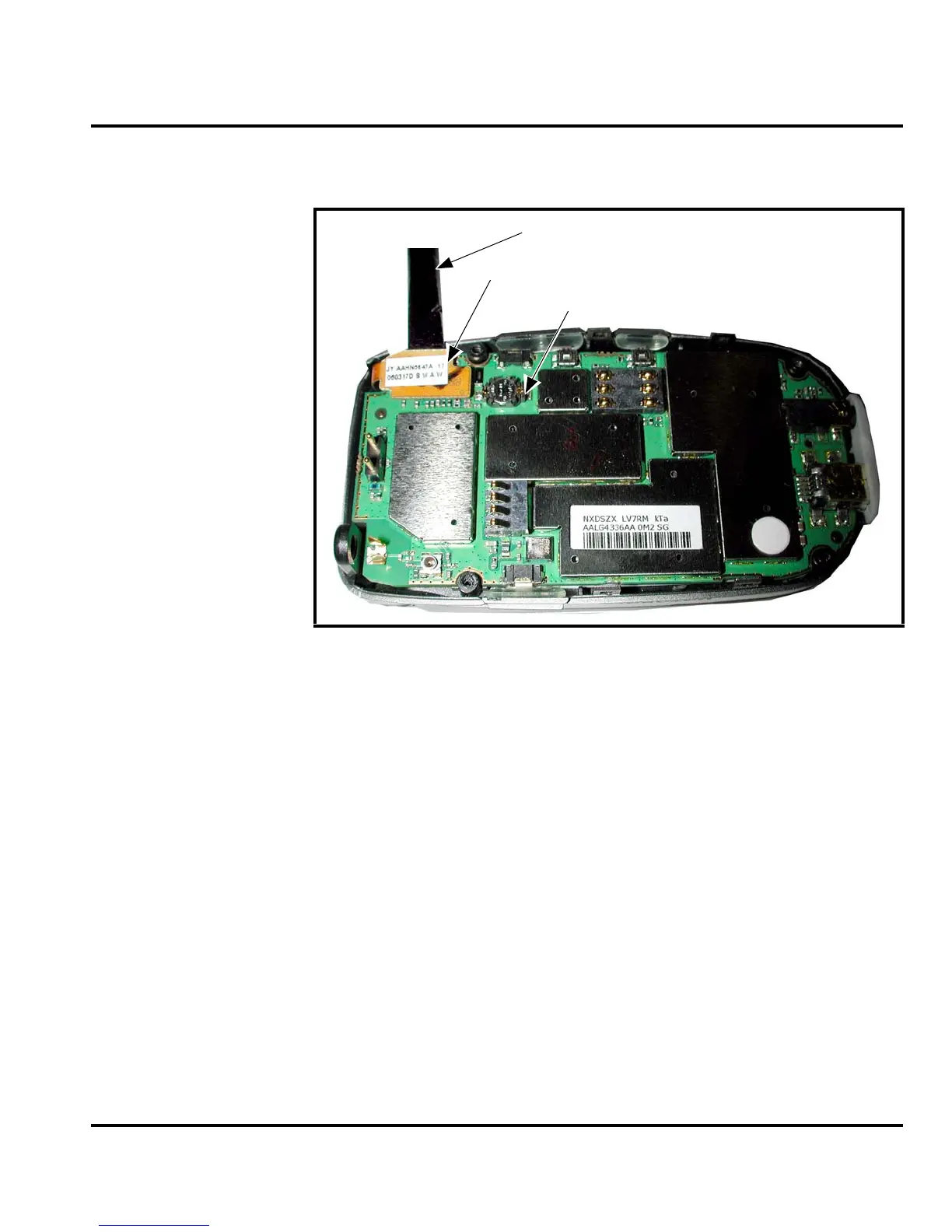

Figure 8. Disconnecting the Flex from the Transceiver Board
Flex Connector
Transceiver Board
Disassembly Tool
