6809495A43-C April 03, 2006 31
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Flip Assembly
1. Remove battery cover, battery, SIM, antenna, rear housing, and transceiver
board assembly as described in the procedures.
2. Flex the right side of the front housing assembly to allow the flip assembly
hinge to separate from the knuckle (see Figure 12).
050485o

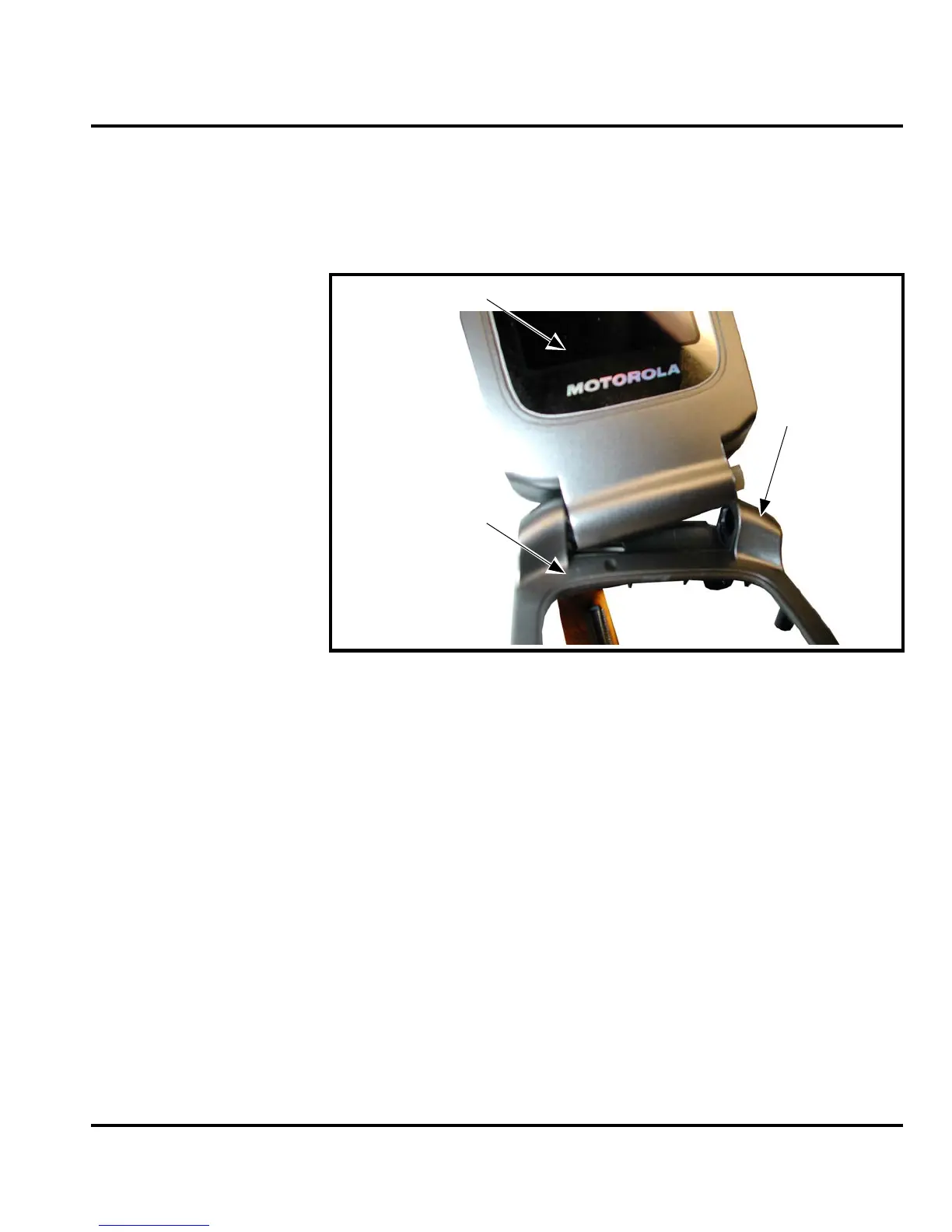

Figure 12. Removing the Flip Assembly
Knuckle
Front Housing
Flip Assembly
To Next Page
