Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Camera Assembly
1. Remove the battery cover, battery, SIM, antenna, rear housing, and
transceiver board assembly, flip assembly cover, and flip display bracket as
described in the procedures.
2. Use the plastic tweezers to remove the camera assembly snubber from the flip
assembly (see Figure 16). Set the snubber aside for reassembly.
G
The flexible printed cable (FPC) (flex) is easily damaged. Exercise extreme care when
handling.
050480o

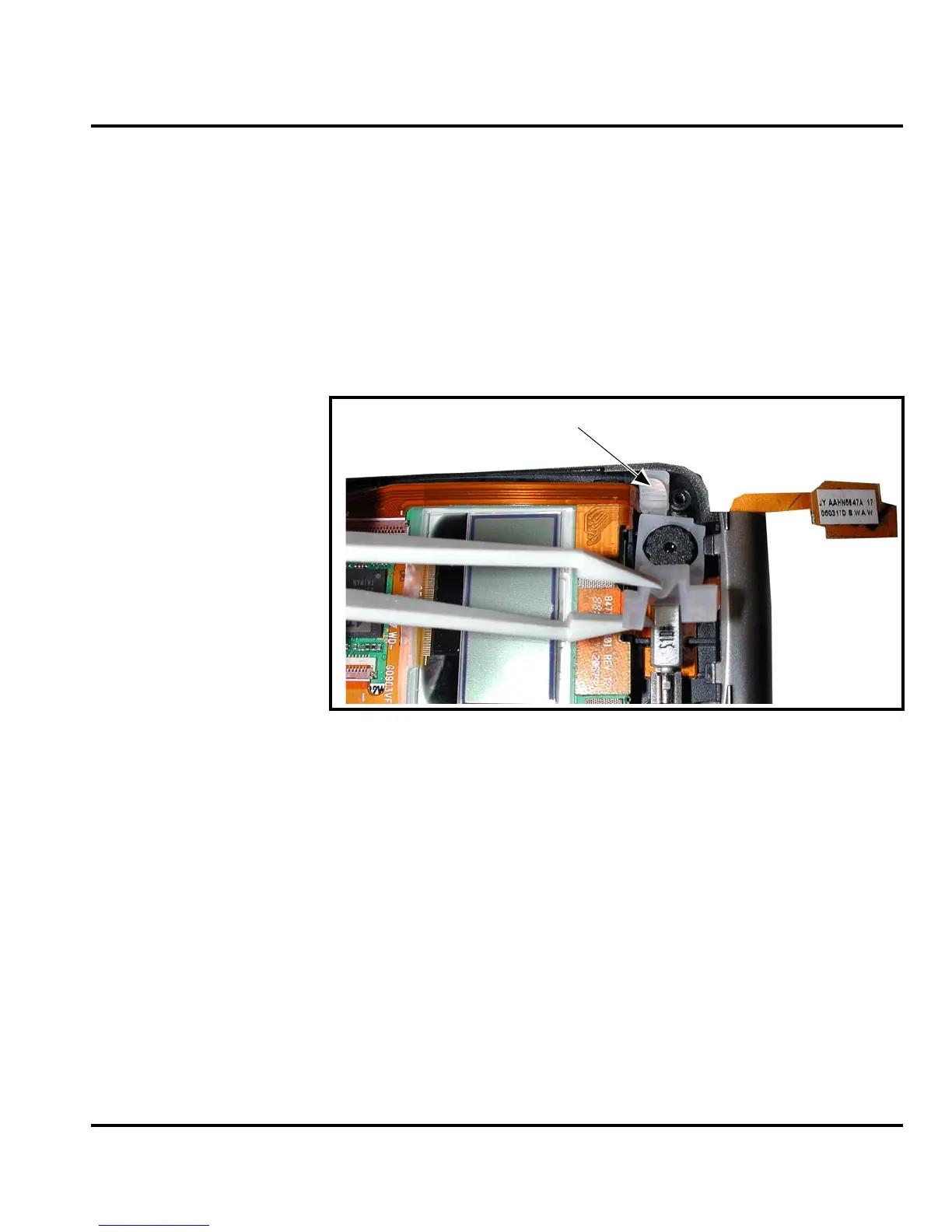

Figure 16. Camera Assembly Snubber Removal
Camera Assembly Snubber
