36 April 03, 2006 6809495A43-C
Disassembly V235 GSM
3. Unlock the ZIF connector and remove the camera assembly flex connector (see
Figure 17).
4. Carefully lift the camera assembly and flex out of the display assembly.
5. To replace, carefully press the camera assembly into its slot in the flip display
assembly.
6. Insert the end of the camera assembly flex cable into its slot in the ZIF
connector on the flip display assembly. Avoid damage to the flex cable.
050491o

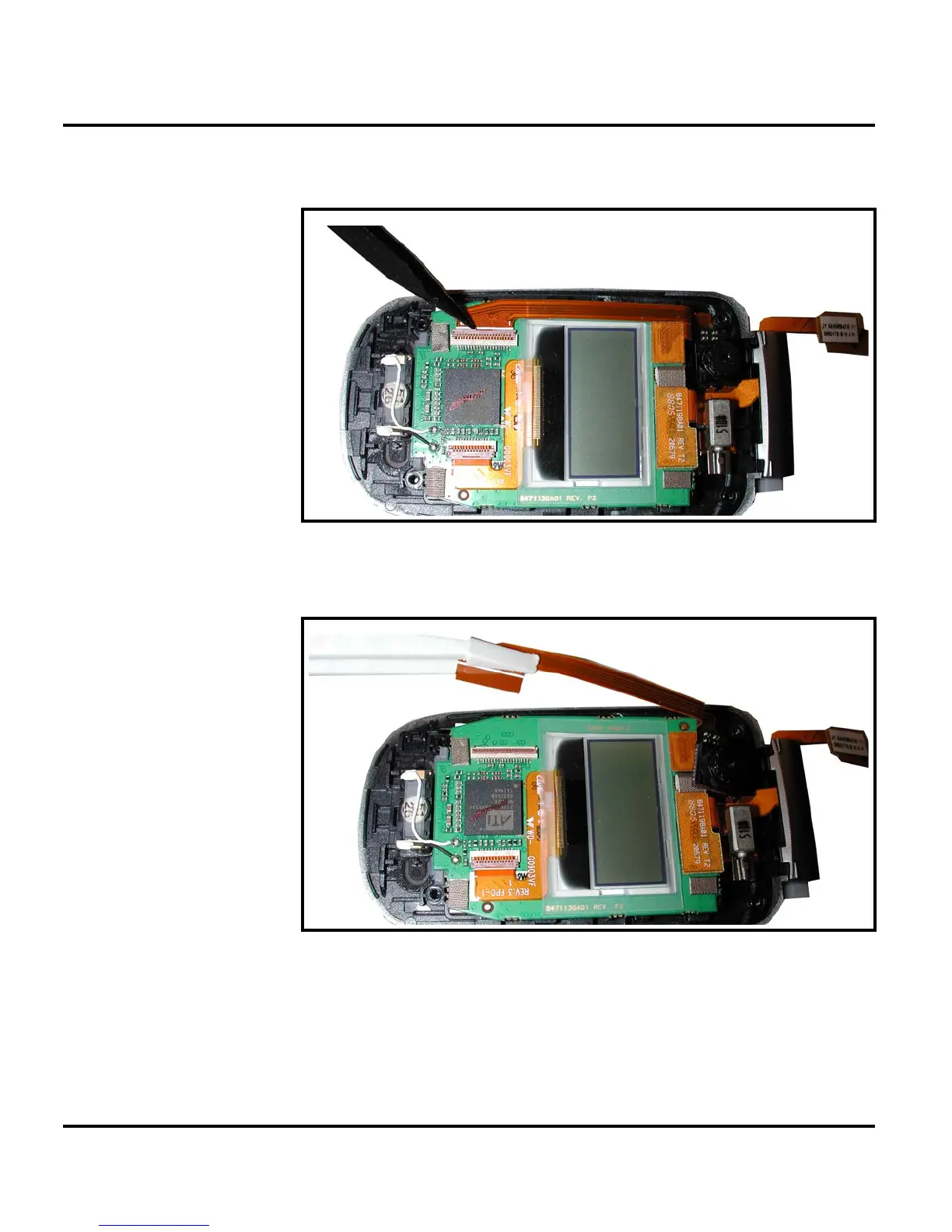

Figure 17. Camera Assembly Flex Connector Removal
050492o
Figure 18. Camera Assembly Removal
