6809497A15-A January 31, 2006 27
Level 1 and 2 Service Manual Disassembly
4. Use the disassembly tool to pry the antenna out of the antenna assembly.
5. To replace, insert the antenna into the acoustic chamber assembly.
6. Align the acoustic chamber assembly to the transceiver PC board and gently
press into position. Ensure the latches are secured to the PC board.
7. Replace the transceiver PC board assembly, rear housing, SIM, battery and
battery cover as described in the procedures.
051694o

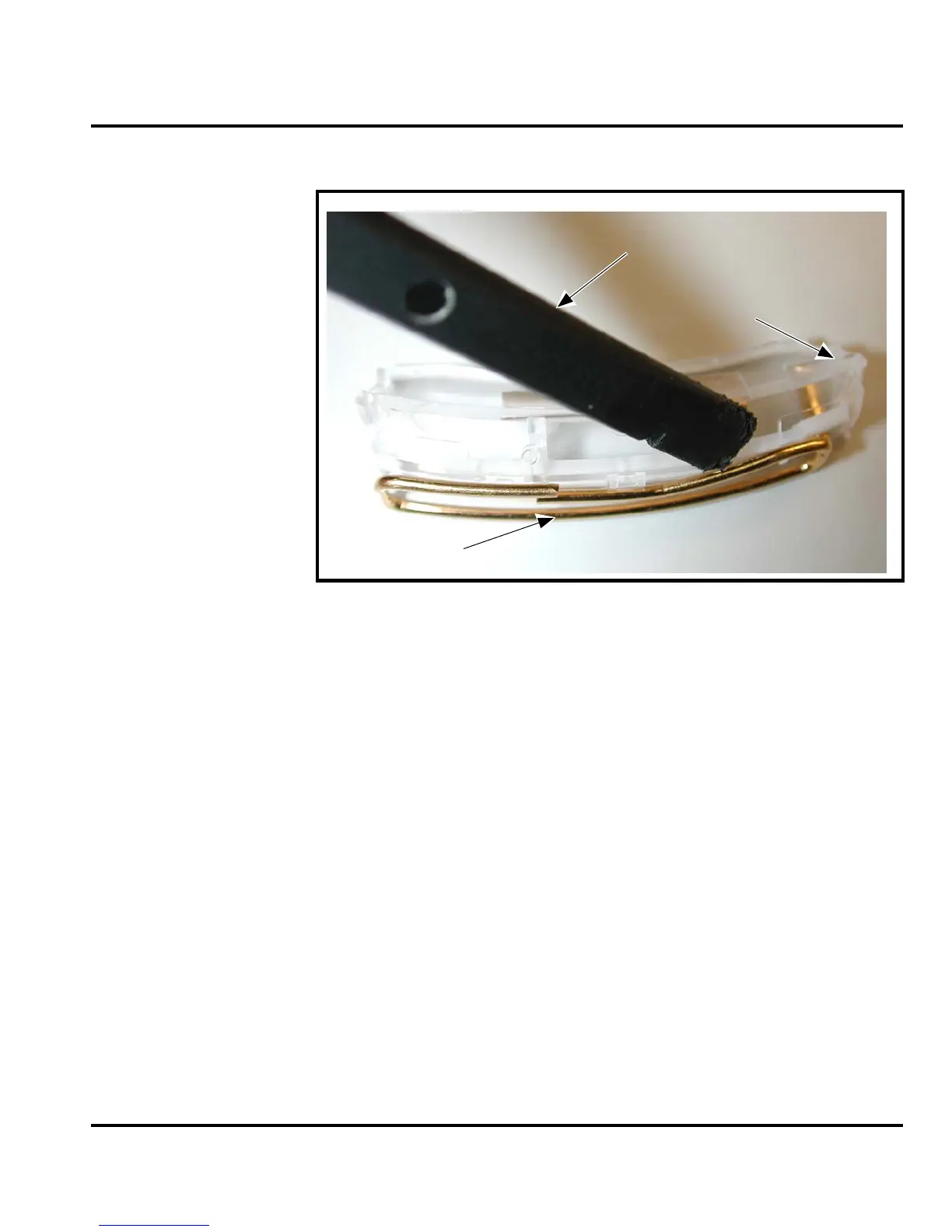

Figure 11. Removing the Antenna
Antenna
Disassembly tool
Acoustic chamber
