Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Subscriber Identity Module (SIM) and Memory Card
1. Remove the battery door and battery as described in the procedures.
2. Slide the SIM away from the SIM holder, as shown in Figure 3.
3. Carefully lift the SIM from the phone.
4. To replace, insert the SIM into the holder, ensuring the keyed corner of the SIM faces the
outward edge of the phone.
5. Replace the battery and battery door as described in the procedures.
6. Slide the memory card away from the memory card holder, as shown in Figure 3.
7. Carefully lift the memory card from the phone.
8. To replace, insert the memory card into the holder, ensuring the keyed corner of the memory
card faces the top edge of the phone.
9. Replace the battery and battery door as described in the procedures.
061424o

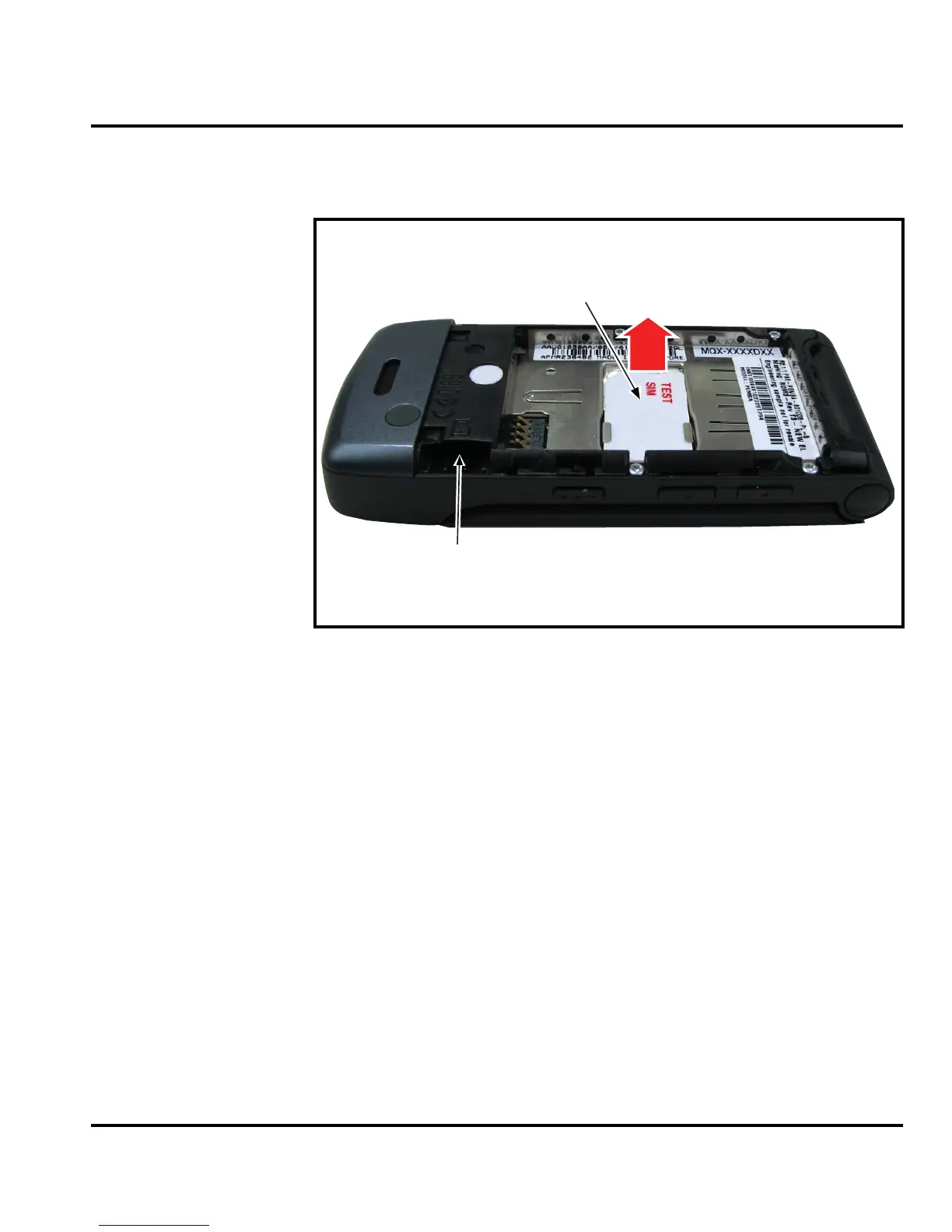

Figure 3. Removing the SIM and Memory Card
SIM
memory card slot
