6809509A89-O March 01, 2007 23
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Top Flip Assembly Cover
1. Remove the battery cover, battery, SIM, memory card, rear housing, and transceiver board
assembly as described in the procedures.
2. Remove the 4 flip assembly screw caps.
3. Use the T-5 driver to remove the 4 screws from the flip assembly (see Figure 10). Retain
the screws for re-assembly.
4. Use the disassembly tool to gently pry off the top flip cover (see Figure 11).
061431o

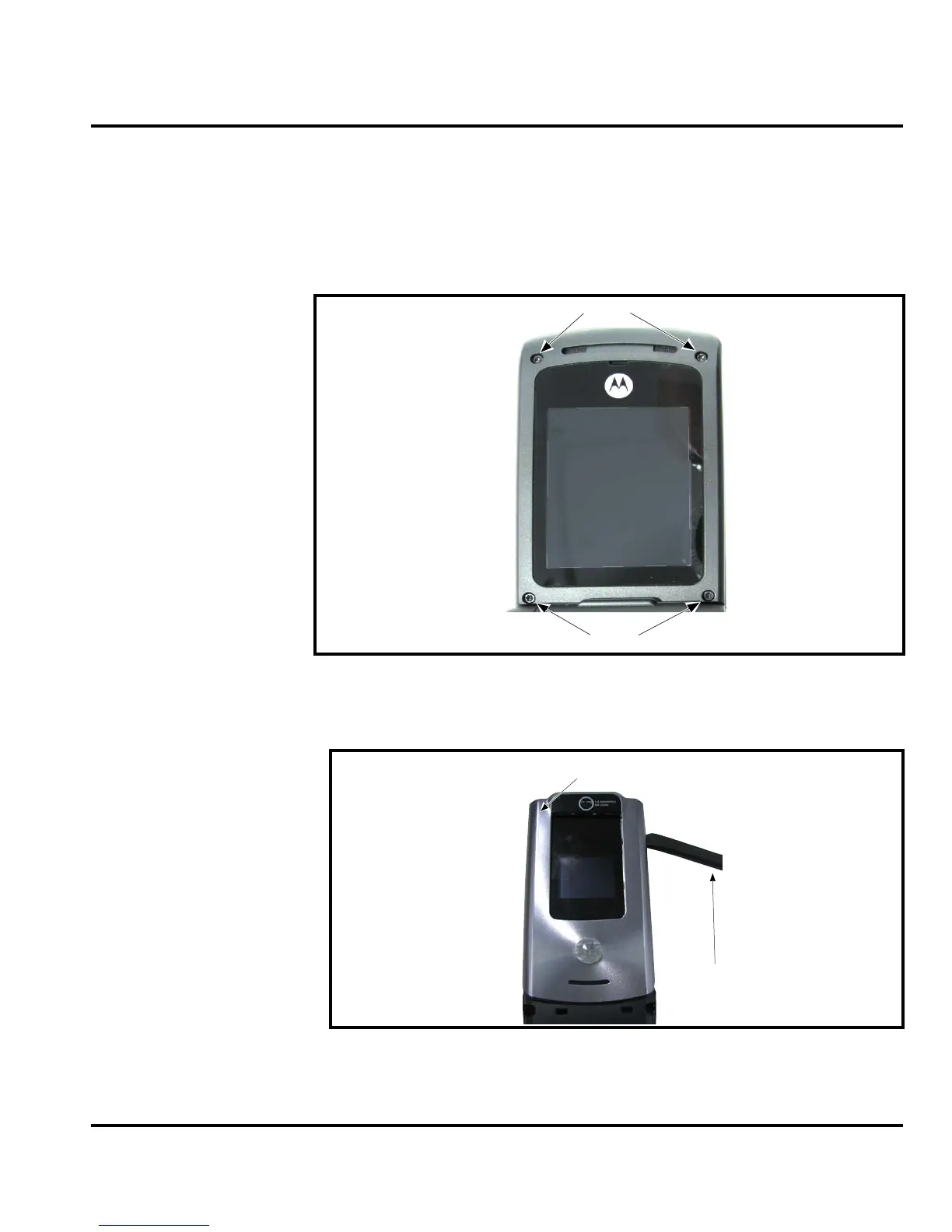

Figure 10. Removing the Flip Assembly Screws
040722o
Figure 11. Separating the Top Flip Assembly Cover
Screws
Screws
Flip Assembly Cover
Disassembly Tool
