Motorola W510 Service Manual

38 March 01, 2007 6809509A89-O
Troubleshooting
Programming: Software Upgrade and Flexing
Contact your local technical support engineer for information about equipment and procedures
for flashing and flexing.

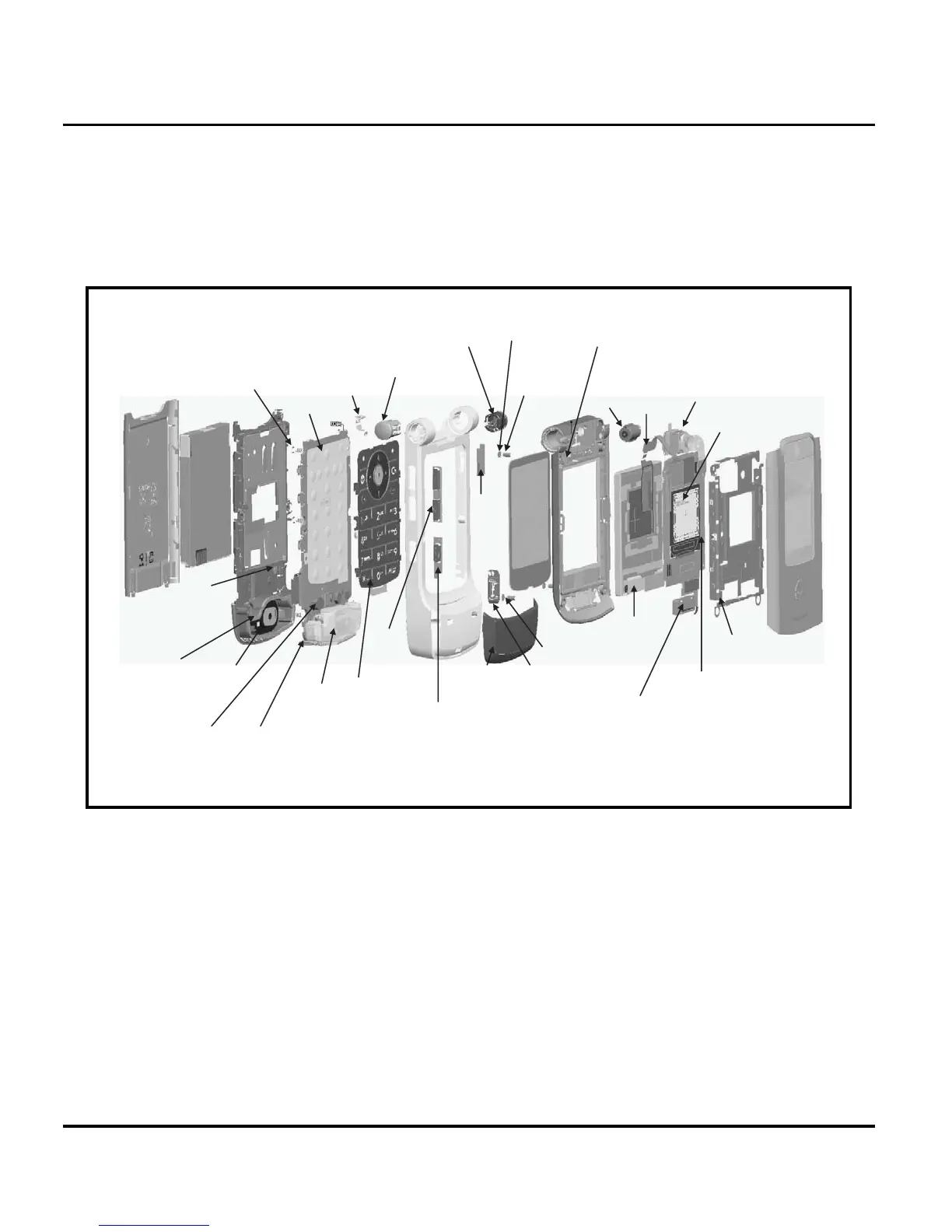

Exploded View Diagram (Main assembly)
031826o
Figure 22. Exploded View Diagram (Main assembly)
Batt-Door
AAHN5651
Rear-hsg Assy
0170388R01
BT50 Batt
SNN5771
Xcvr-PCB
AALG4345
Cap Lock
Grounding
4270356D03
Xcvr M1.5
self-tap
screws
0387347Y03
VOL
Up/DownSide
keys
3871436A01
FJA-Antenna
8571330A01
Antenna-
holder, Assy
0170388L01
Left knuckle
caps
1571452A01
Front-hsg Assy
0170388P01
Front-hsg
Cap
0171962A01
EMU Grommet
3771324A05
Main Display
Lens
6171307A01
TOP Flip-
bumpers
3871443A01
Hinge
5570373A02
Flip-inner assy
0170388M01
Display-Module
7271359C02
1.3 MP Camera
Module
0171013J01
Flip-Frame assy
0171358A01
Hinge Flex
8471323A41
CLI Lens
6171356A01
Flip-Top Assy
0170388N01
M1.6 Flip
Screws
0387726M10
14x20mm
Speaker
0170298Z27
EL-Dome
Panel
0171439A01
RF Grommet
0570389B01
Speaker
Gasket
3270341C09
Right knuckle
Assy
0171494A01
Keypad
3871304A01
CLI Display
7287518Y01
Flip PCBA Assy
AALG4346AA
Speaker,
Earpiece Assy
0171289A66
BOTTOM Flip-
Bumpers
3871444A01
VR Side Key
3871451A01
SMART Side
Key
3871450A01
Magnet
5987825N02
Coin Cell
6087603L01
Water Detection Label
(Housing)
5485042F01
Water Detection Label
(PCBA)
5471536C01
