26 March 01, 2007 6809509A89-O
Disassembly
Removing and Replacing the Camera Assembly
1. Remove the battery cover, battery, SIM, rear housing, and transceiver board assembly, flip
assembly cover, and CLI lens cover as described in the procedures.
2. Unlock the ZIF connector and remove the camera assembly flex connector.
3. Carefully lift the camera assembly and flex out of the flip assembly
(see Figure 15).
4. To replace, carefully insert the camera assembly into its slot in the flip assembly.
5. Insert the end of the camera assembly flex cable into its slot in the ZIF connector on the
flip display assembly. Avoid damage to the flex cable.
6. Replace the CLI lens, the flip assembly cover, transceiver board, rear housing, SIM, battery,
and battery cover as described in the procedures.
G
The flexible printed cable (FPC) (flex) is easily damaged. Exercise extreme care when
handling.

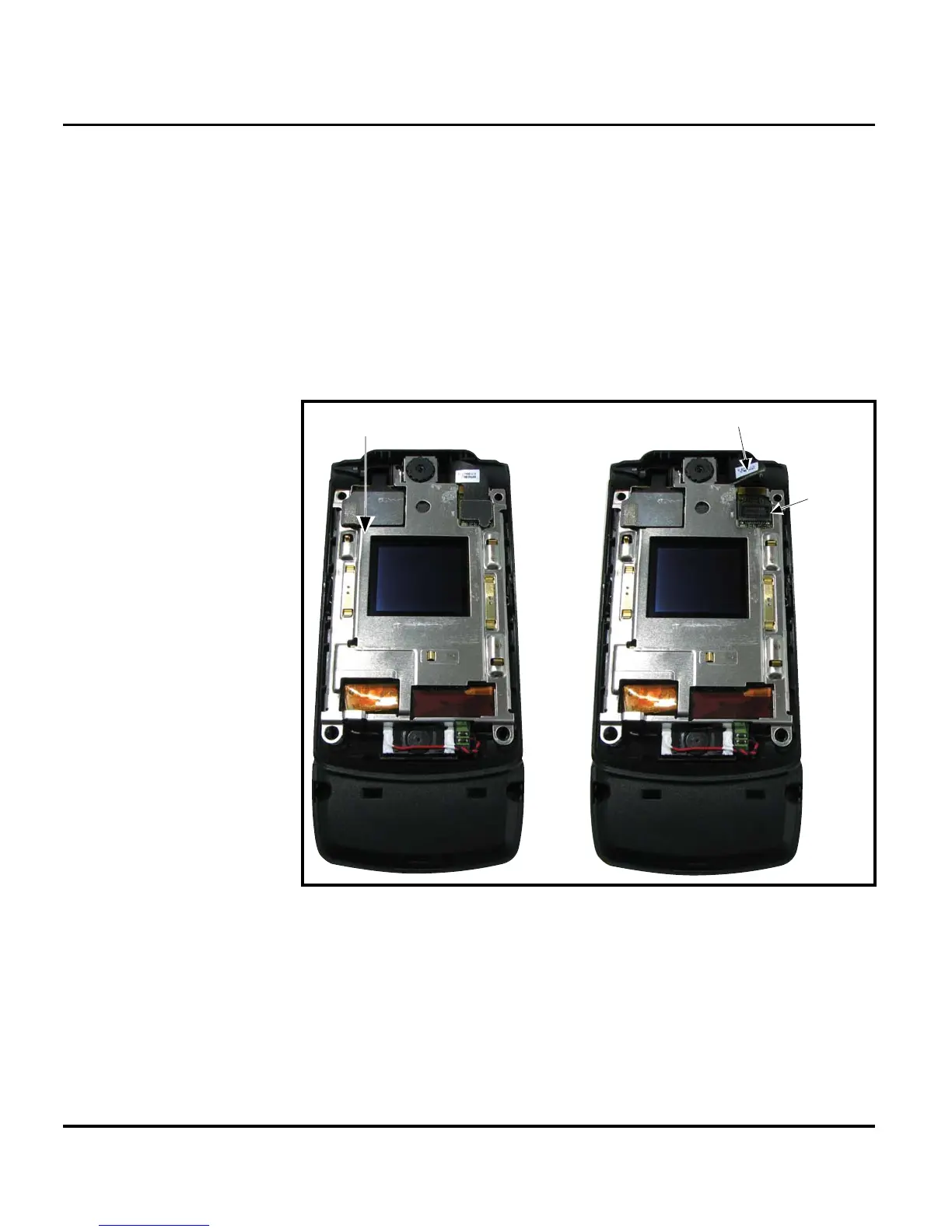

Figure 15. Camera Assembly Removal
Flip-Frame Assembly
Camera Flex
ZIF Connector
