18 March 01, 2007 6809509A89-O
Disassembly
Removing and Replacing the Rear Housing
1. Remove the battery cover, battery, SIM and memory card as described in the procedures.
2. Using a Torx driver with a T-5 bit, remove the screws at each side of the phone. Retain the
screws for reassembly. See Figure 4.
G
This product contains static-sensitive devices. Use anti-static handling procedures
to prevent electrostatic discharge (ESD) and component damage.
G
In addition to 2 screws, the rear housing assembly is fastened with plastic latches.
These are fragile and should be released with care.
061425o

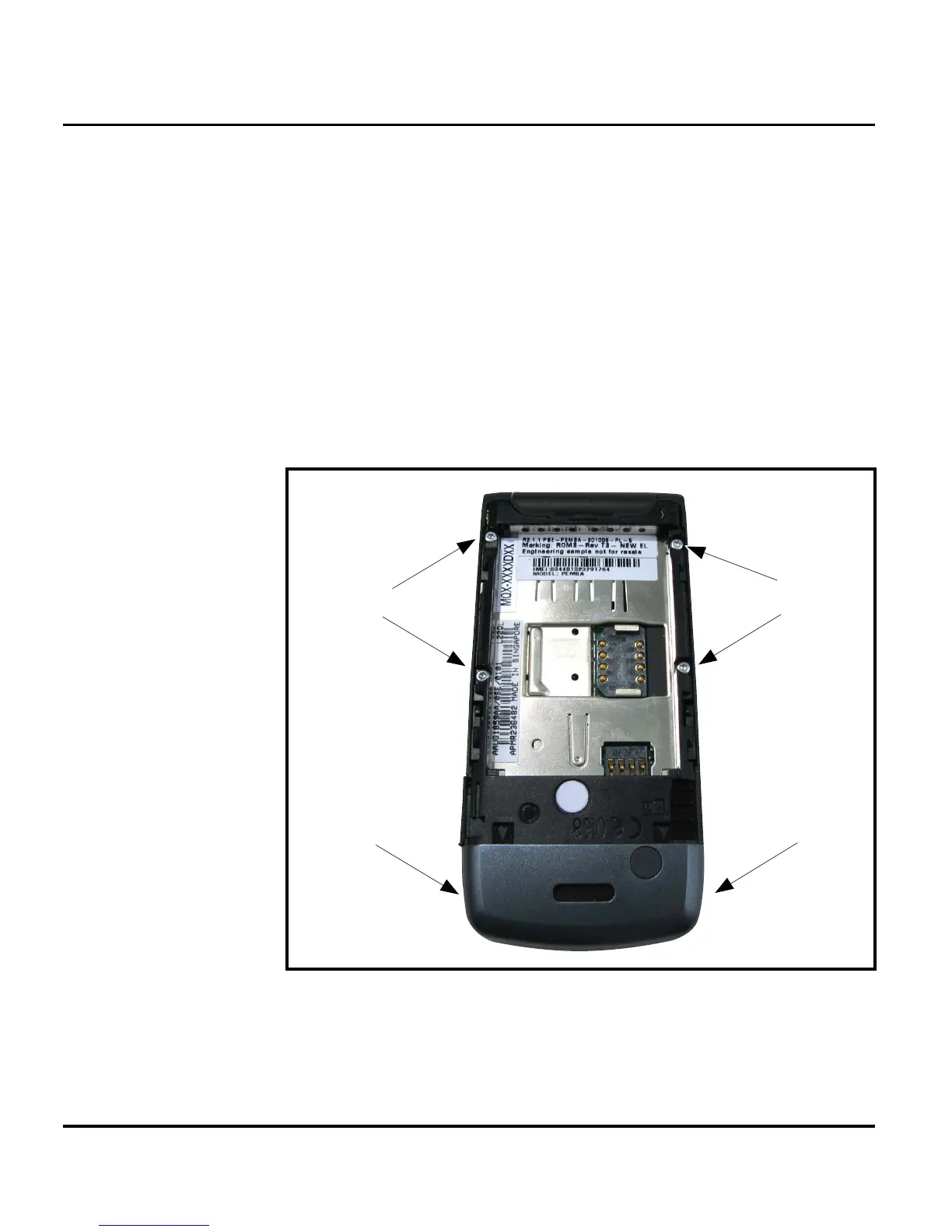

Figure 4. Removing the Rear Speaker Housing Screws
Housing Screw
Housing Screw
Housing Screw
(hidden on
other side)
Housing Screw
(hidden on
other side)
