22 March 01, 2007 6809509A89-O
Disassembly
3. Use the disassembly tool to release the antenna assembly as shown in Figure 8.
4. Carefully lift the antenna assembly away from the phone.
5. To replace, assembly starts from right to left. Align the antenna assembly to the phone.
6. Carefully press the antenna assembly into position until the antenna assembly latches snap
into position.
7. Replace the transceiver board, rear housing assembly, SIM, battery and battery cover as
described in the procedures.
061428o

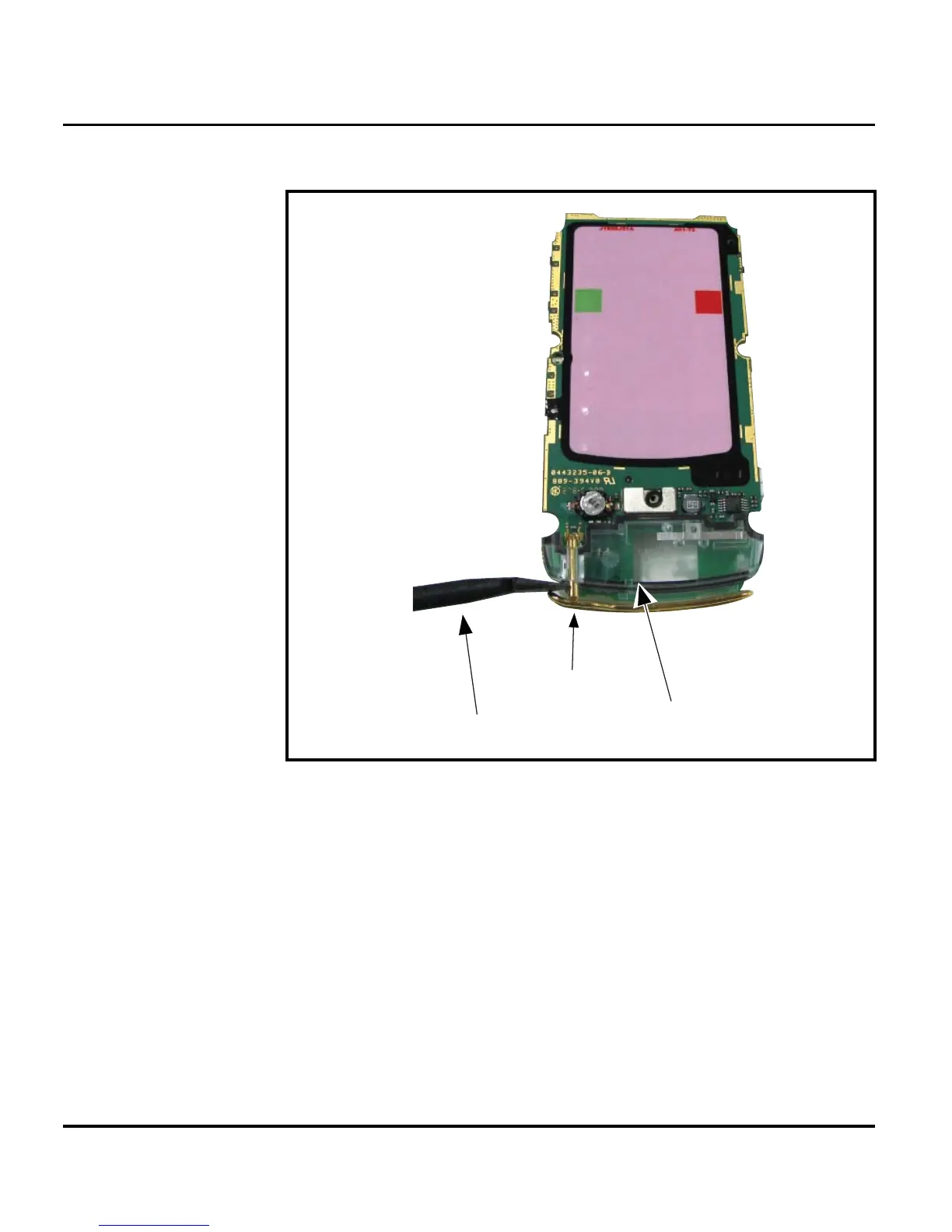

Figure 9. Removing the Antenna Assembly
Antenna
Antenna holde
assemblyDisassembly Tool
