Level 1 and 2 Service Manual Disassembly
6. Use the disassembly tool to push the left knuckle out towards the left side.
7. Press the hinge inwards using the disassembly tool.
8. Seperate and remove the flip and front housing.
9. To replace the flip hinge, replace the flip and front housing.
10. Snap the right hinge back into place.
11. Using the disassembly tool to guide the left knuckle back into its socket.
12. Assemble the cap lock.
13. Replace the transceiver board assembly, rear housing, memory card, SIM card, battery and
battery cover as described in the procedures.
040722o

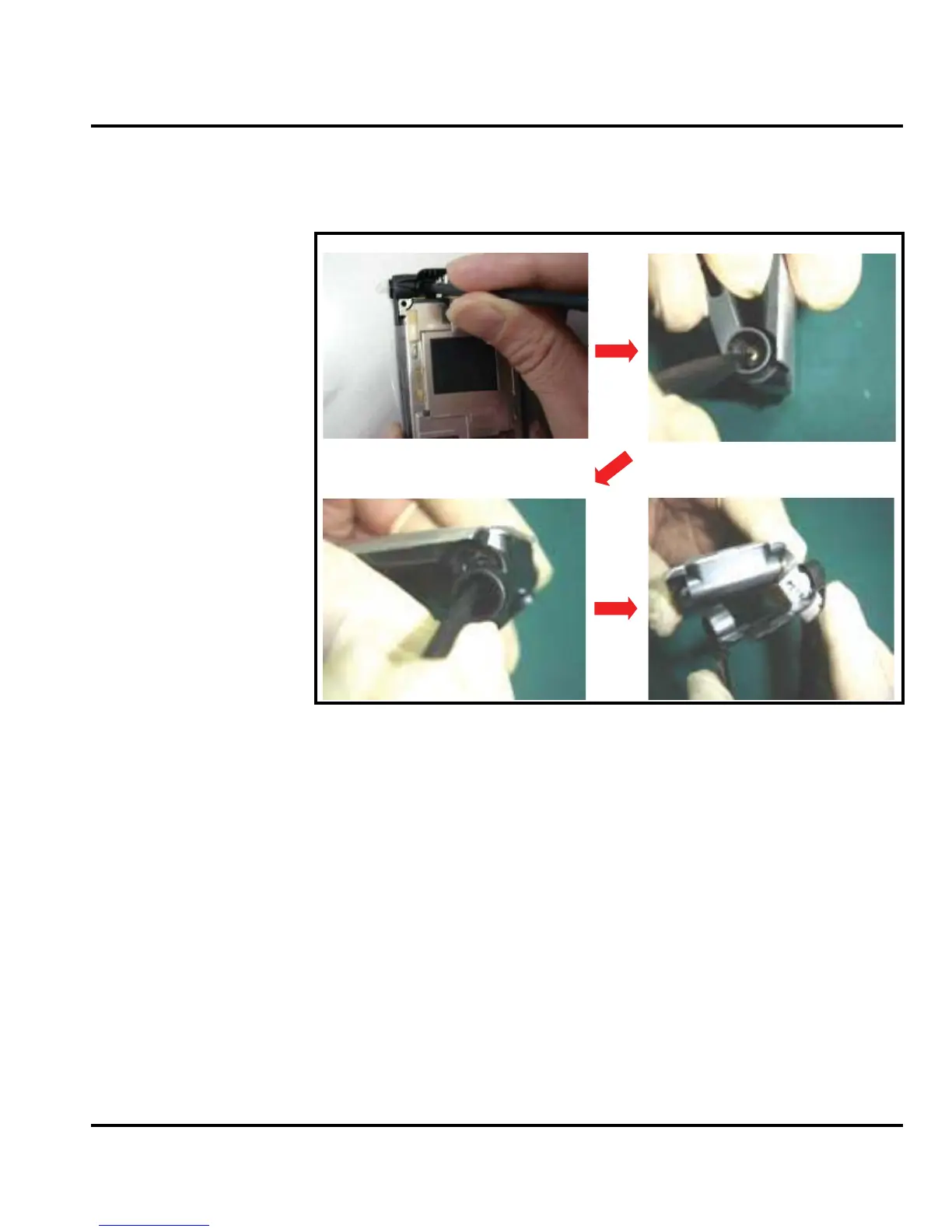

Figure 20. Removing the Flip Hinge
