11
Performance Checks
5
Introduction to
This Section
This section covers performance checks used to verify that the radio meets published
specifications. The recommended test equipment listed in the previous section approaches
the accuracy of the manufacturing equipment, with a few exceptions. Accuracy of the
equipment must be maintained in compliance with the manufacturer’s recommended
calibration schedule. Checks should be performed if radio performance degradation is
suspected.
Setup Supply voltage can be connected from the battery eliminator. The equipment required for
alignment procedures is connected as shown in the “Radio Alignment Test Setup” diagram
(Figure 4).

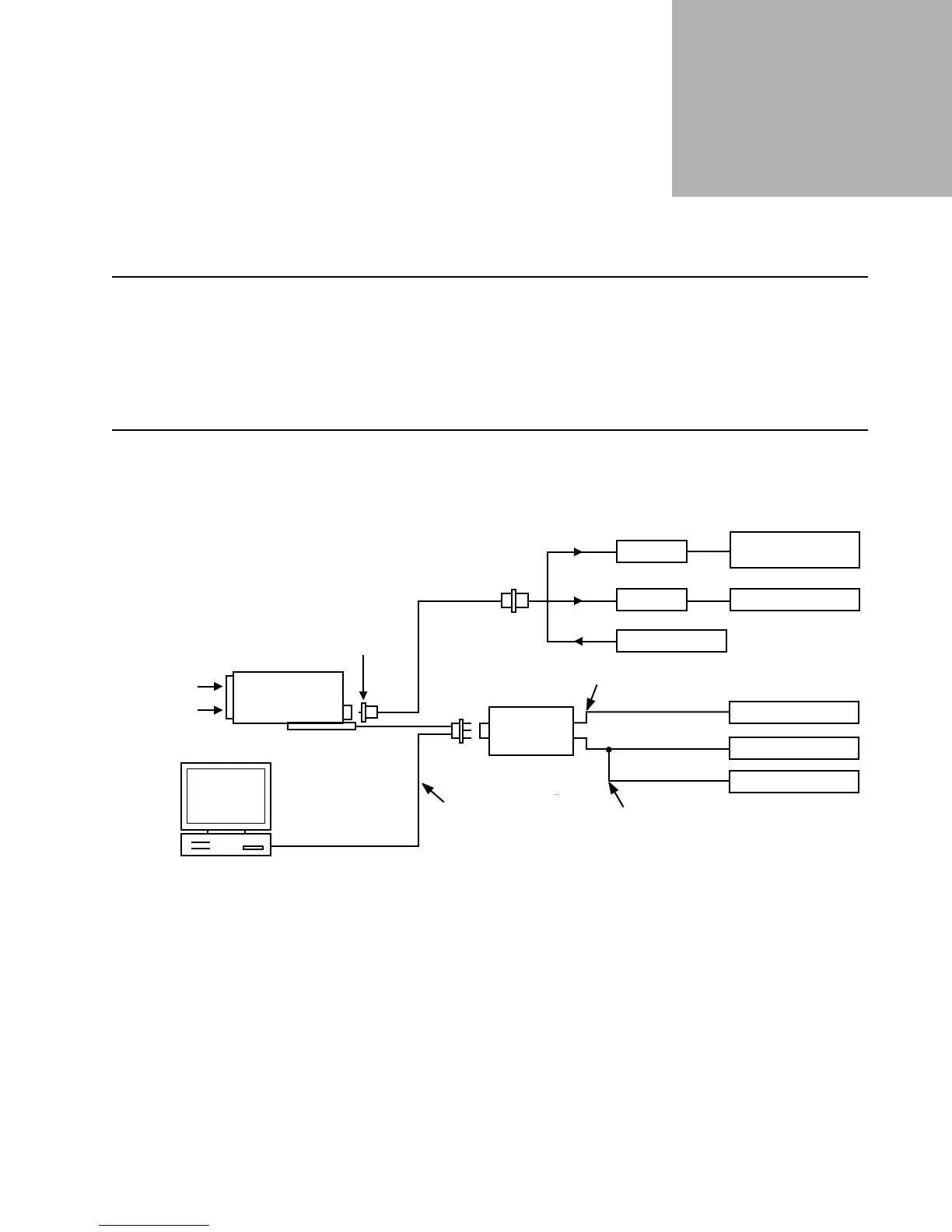

Figure 4. Radio Alignment Test Setup
BNC
COMPUTER
AUDIO GENERATOR
SINAD METER
AC VOLTMETER
TX
RX
30 dB PAD
30 dB PAD
RF GENERATOR
SYSTEM ANALYZER
OR COUNTER
WATTMETER
BATTERY
ELIMINATOR
0180305G54
TRANSMIT
RECEIVE
RADIO
PROGRAM/TEST CABLE
RKN4106
AUDIO IN
SET TO APPROX. 450mV FOR Tx
MEASURE 80mV FOR Tx
SMA-BNC
58-80348B33
TEST SET
RLN-4460
