Disassembly/Assembly
41
Remote Speaker
Microphone
Adapter
The Remote Speaker Microphone (RSM) adapter is located on the back of the radio, just
above the battery. It must be used to connect the RSM to the radio. If the RSM is not
used, the adapter must be removed.
Remove the Adapter Lift the larger side (below the antenna port) of the adapter away from the radio using your
finger.
If you cannot easily remove the adapter with your finger, use a small, flat bladed
screwdriver to pry the larger end side of the adapter away from the radio.
Attach the Adapter 1. With the Motorola side of the adapter facing out, snap the smaller end of the adapter
into place in the shroud indent, below the On/Off Volume Control Knob.
2. Snap the larger end of the adapter into place in the shroud indent, below the antenna
port.

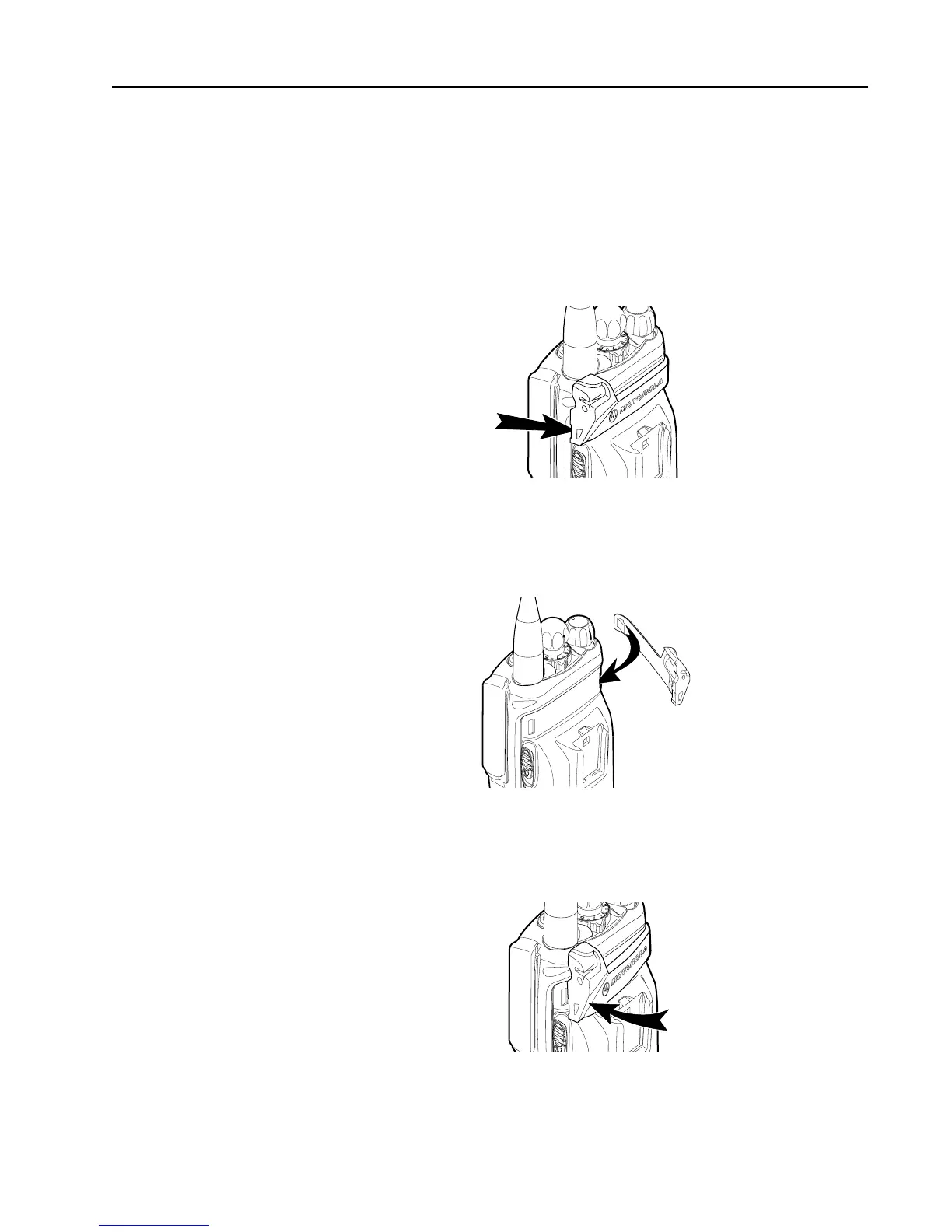

Figure 25. Removing the RSM Adapter
Figure 26. Step 1, Attaching the RSM Adapter
Figure 27. Step 2, Attaching the RSM Adapter
